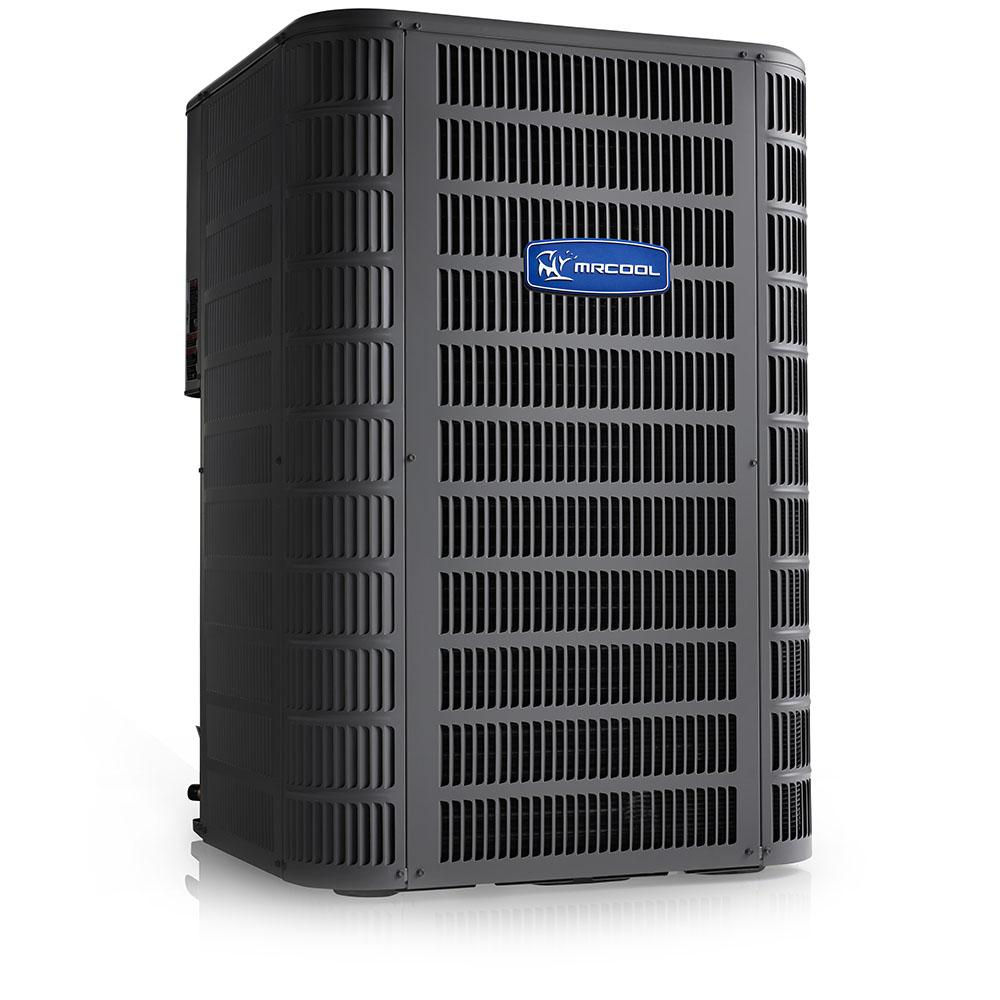

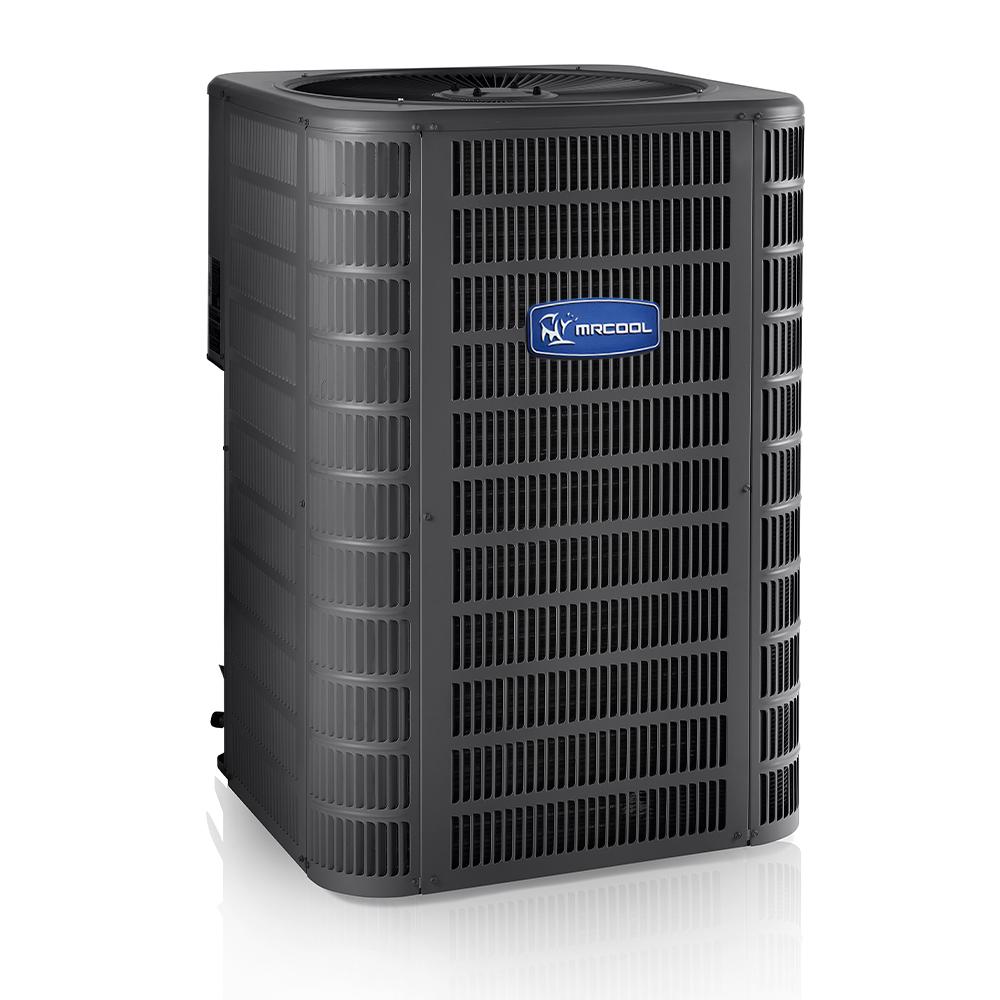

Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 3 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).
Key Features:
- 3 Ton up to 16 SEER Split System A/C Condenser
- CoolGuard total corrosion protection technology designed coil
- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- 10 year registered parts warranty
- Standard 5 year limited parts warranty
- Model #: MAC16036A
Details
|
SEER |
up to 16 |
|
MAX SEER |
16 |
|
EER |
12.2 |
|
CFM |
1110-1275 |
|
TONNAGE |
3 |
|
COOLING CAPACITY |
33000-34000 |
|
VOLTAGE |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
STAGE |
Single |
|
MAX FUSE BREAKER |
30 A |
|
MIN CIRCUIT AMPACITY |
18 A |
|
COLOR |
Gray |
|
COLOR FAMILY |
Gray |
|
RATED LOAD |
13.6 |
|
MAX COVERAGE AREA |
1500 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
113 |
|
DECIBEL RATING |
76 |
|
INVERTER |
No |
|
MIN AMBIENT HEAT |
(-20F) |
|
LINESET INCLUDED |
No |
|
LINE SET LENGTH |
15FT, 25FT, 35FT, 50FT |
|
MAX LINESET LENGTH |
50FT |
|
LINESET FITTING TYPE |
Sweat |
|
LIQUID LINE SIZE |
3/8 in |
|
SUCTION LINE SIZE |
7/8 |
|
COMPRESSOR MOTOR TYPE |
Scroll |
|
CONDENSER FAN MOTOR TYPE |
Direct Drive |
|
CONDENSER FAN MOTOR HP |
1/6 |
|
CONDENSER FAN MOTOR RPM |
825 |
|
METERING DEVICE |
TXV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
7.5kw, 10kw, 15kw |
|
UL RECONIZED |
No |
|
UL LISTED |
No |
|
ETL LISTED |
yes |
|
ETL CERTIFIED |
no |
|
LEED CERTIFIED |
no |
|
ENERGY STAR COMPLIANT |
no |
|
ENERGY STAR CERTIFIED |
no |
|
AHRI CERTIFIED |
yes |
|
REGISTERED WARRANTY |
10 year registered parts warranty |
|
BASE WARRANTY |
Standard 5 year limited parts warranty |
|
REGISTERED PARTS WARRANTY |
Registered 10 Year Parts Warranty |
|
BASE PARTS WARRANTY |
5 Year Parts Warranty |
|
HAS BATTERIES |
No |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
No |
|
NET DEPTH |
37 |
|
NET HEIGHT |
28.25 |
|
NET WIDTH |
28.25 |
|
NET WEIGHT |
181 |
|
GROSS DEPTH |
31 |
|
GROSS HEIGHT |
29.5 |
|
GROSS WIDTH |
30.5 |
|
GROSS WEIGHT |
181 |
