R410A PRE-CHARGED OUTDOOR UNIT, ACCOMMODATING REFRIGERANT LINE LENGTHS UP TO 25 FT. PER CIRCUIT
IMPORTANT NOTE:
THE COPPER TUBING IS INCLUDED IN THE OUTDOOR UNIT CARDBOARD BOX AND THE COMMUNICATION WIRING KIT IS INCLUDED IN THE INDOOR UNIT CARDBOARD BOX. THIS PRODUCT SET IS COMPRISED OF 2 CARTONS ONLY.
- High Efficiency Diamante Ductless Mini Split Heat Pump System
- Cooling capacity: 24,000 BTU/H with 18 SEER efficiency
- Heating capacity: 24,500 BTU/H with 10 HSPF efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13F)
- AHRI Estimated Annual Operating Costs:
- Cooling: $189.00
- Heating: $561.00
FEATURES
- Dual Swing
- Dual Drainage
- Low Noise
- High Efficiency

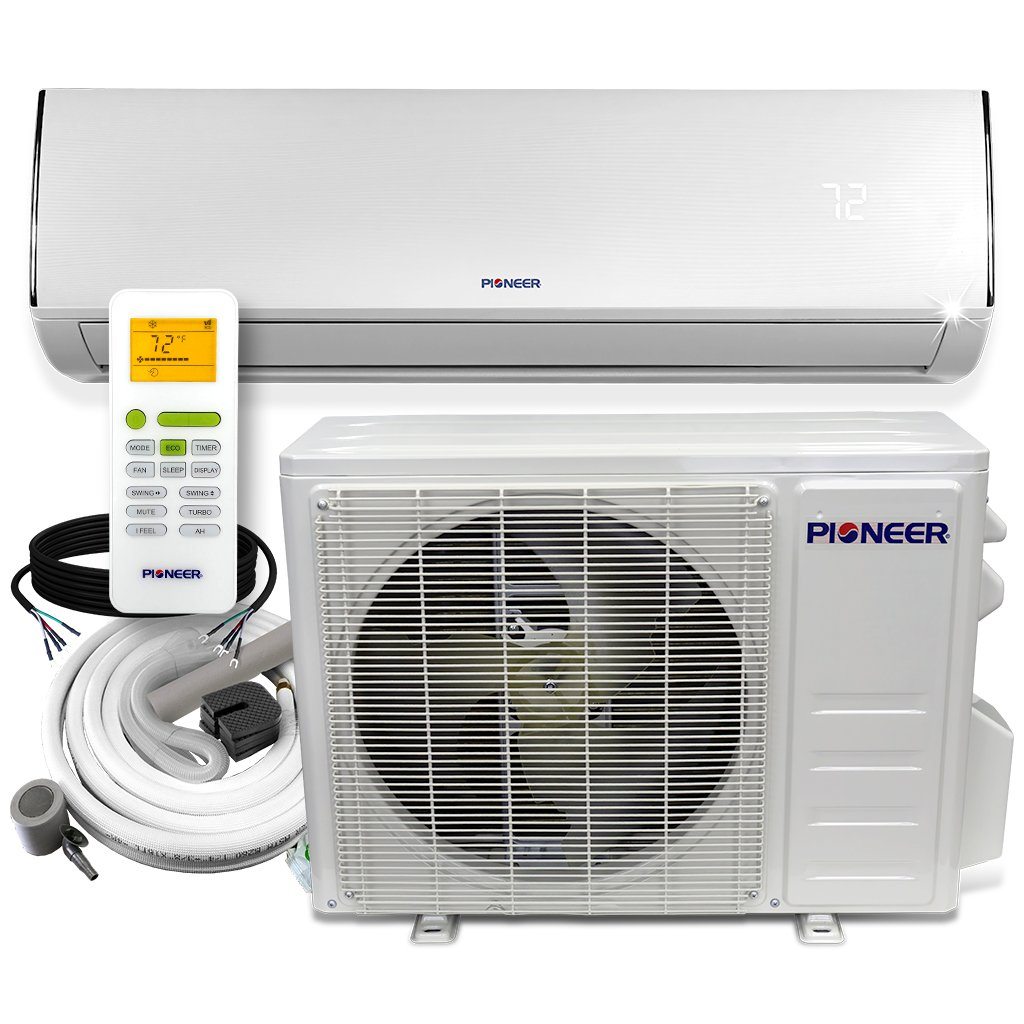

WHAT'S INCLUDED
- Indoor Unit
- Outdoor Unit

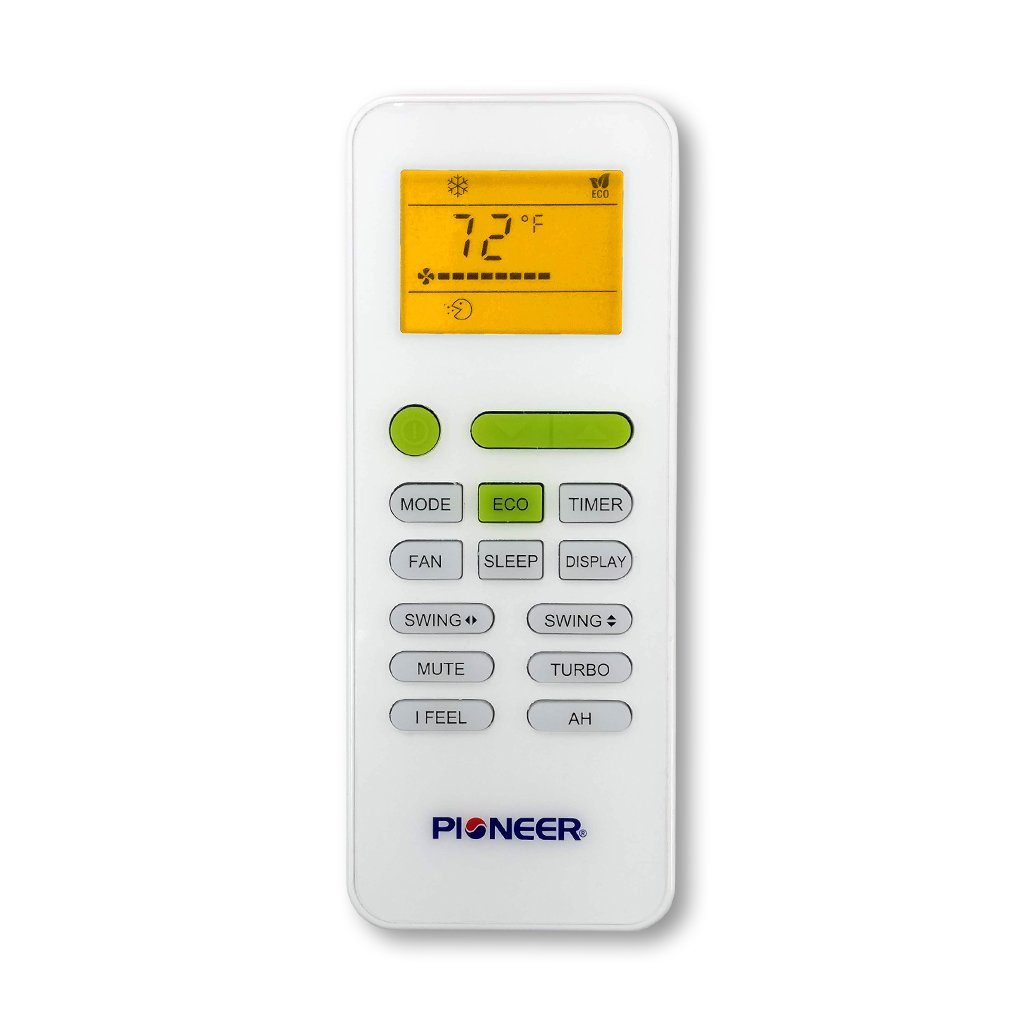

- Wireless Remote Control (with wall holder and batteries)

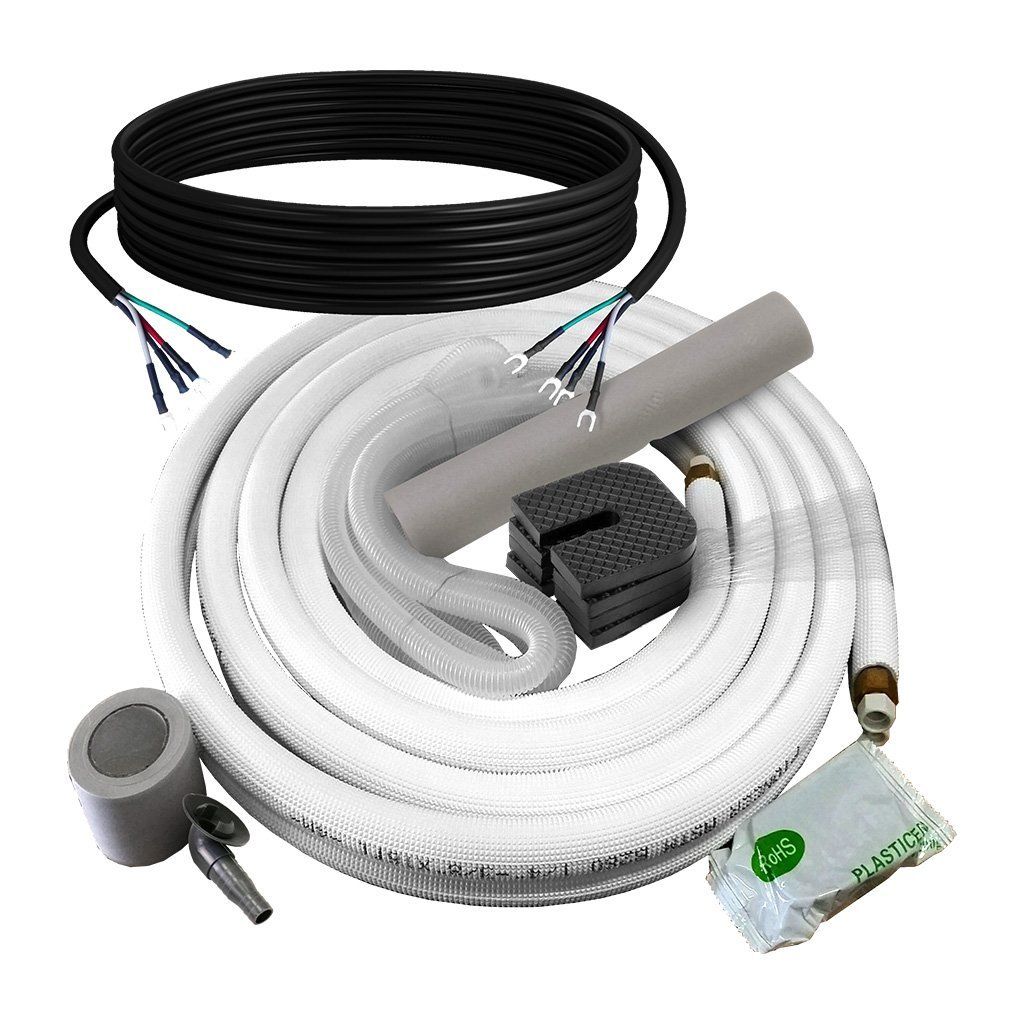

- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
OUR GUARANTEE
- 5 years Warranty for Parts
- 5 years Warranty for Compressor
PERFORMANCE DATA
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling Capacity Range: 6,350~31,050 BTU/h
- Cooling SEER: 18 BTU/w
- Heating Rated Capacity: 24,500 BTU/h
- Heating Capacity Range: 7,200~25,000 BTU/h
- Heating HSPF4: 10 BTU/w
- Refrigerant Type: R410A/63
- Suitable Area: 550~1000 Sq.F

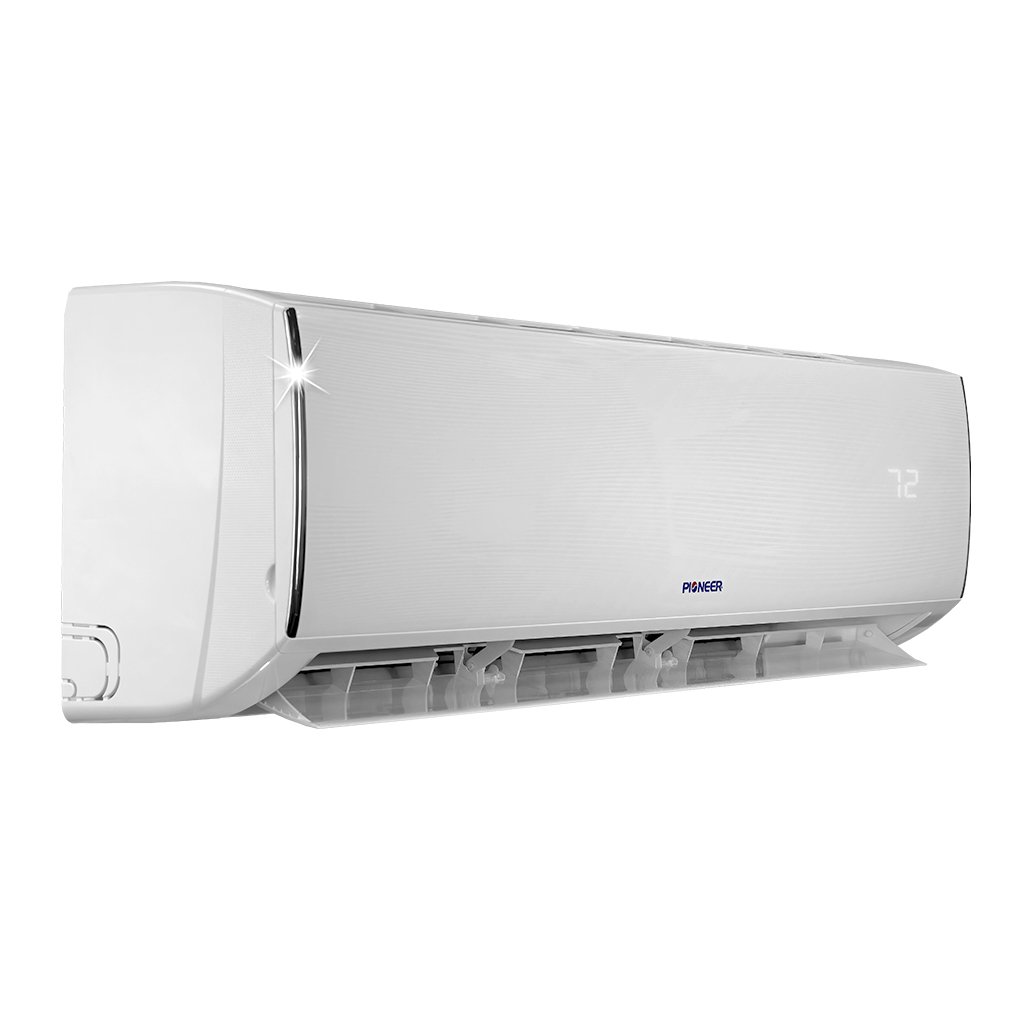

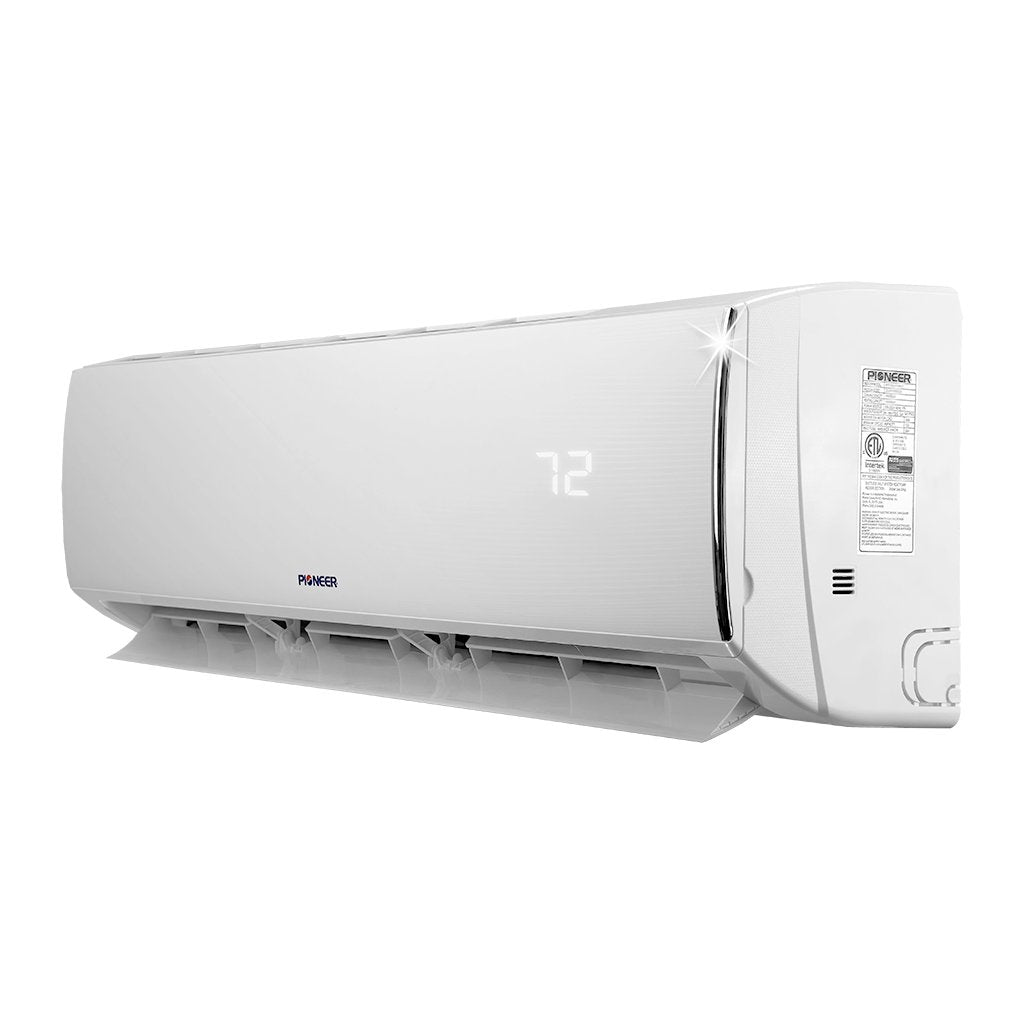

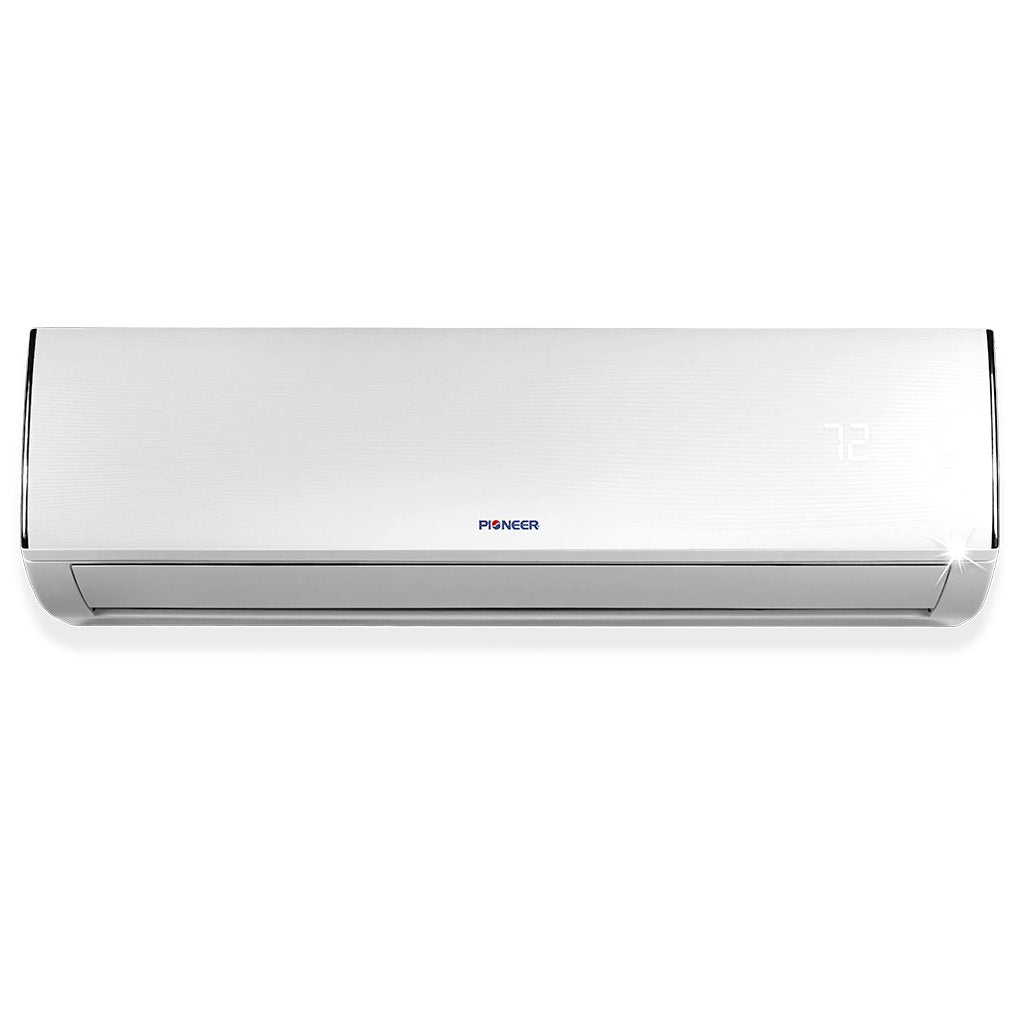

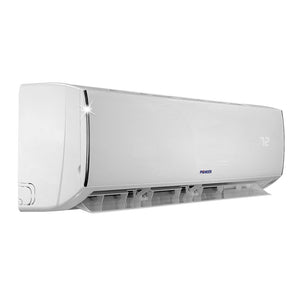

INDOOR UNIT DATA
- Air Flow (Hi): 883 CFM
- Sound Level (Hi/Med/Lo): 50 / 46 / 42 dB(A)
- Net Dimensions (WDH): 46-5/8 x 10-1/4 x 13-3/8 Inches
- Carton Dimensions (WDH): 49-7/8 x 13-3/8 x 16-3/8 Inches
- Net / Gross Weight: 37.5 / 46.3 lbs

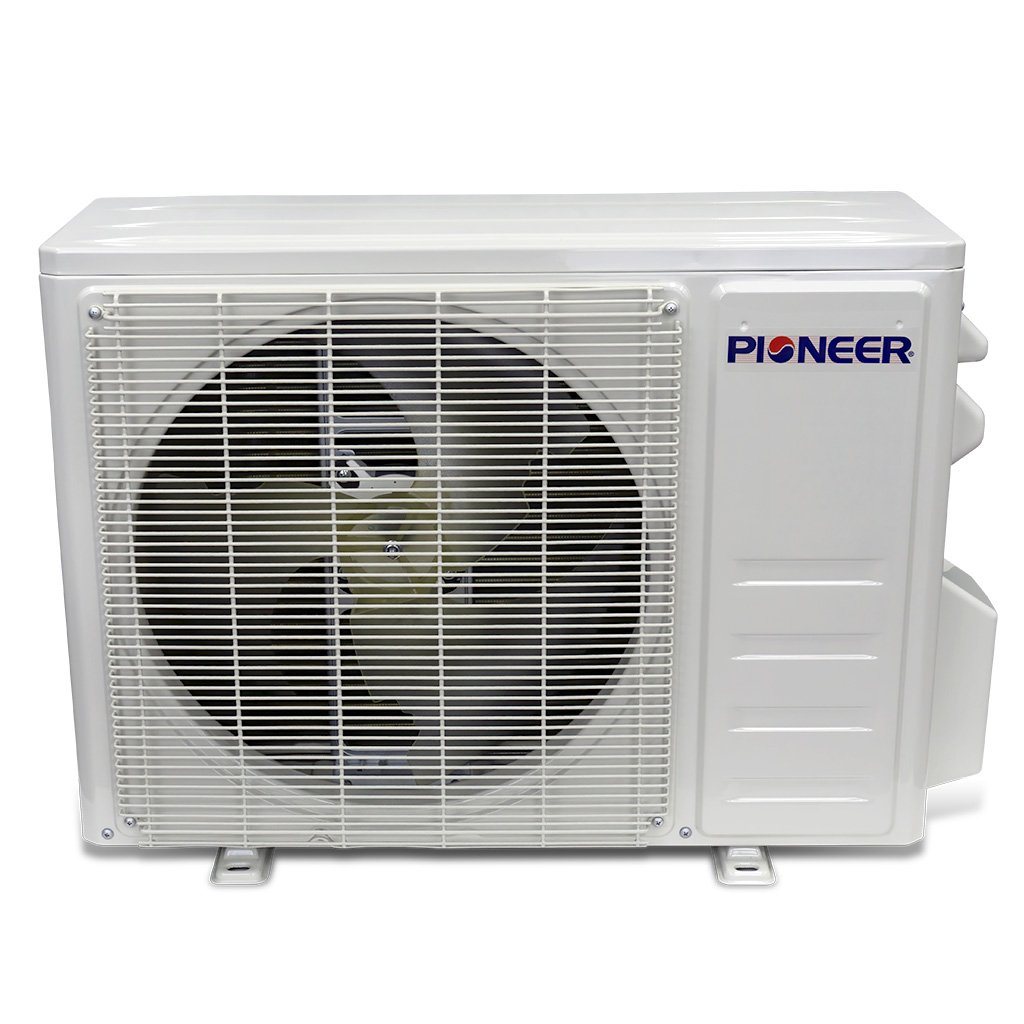

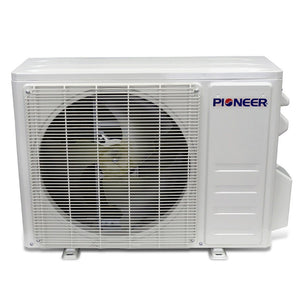

OUTDOOR UNIT DATA
- Sound Level: 58.0 dB(A)
- Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 17 x 28-7/8 Inches
- Net / Gross Weight: 99.2 / 110.2 lbs
