Dual 2 Zone 12000 + 12000 Multi 21.3 SEER Ductless Mini Split A/C Heat Pump

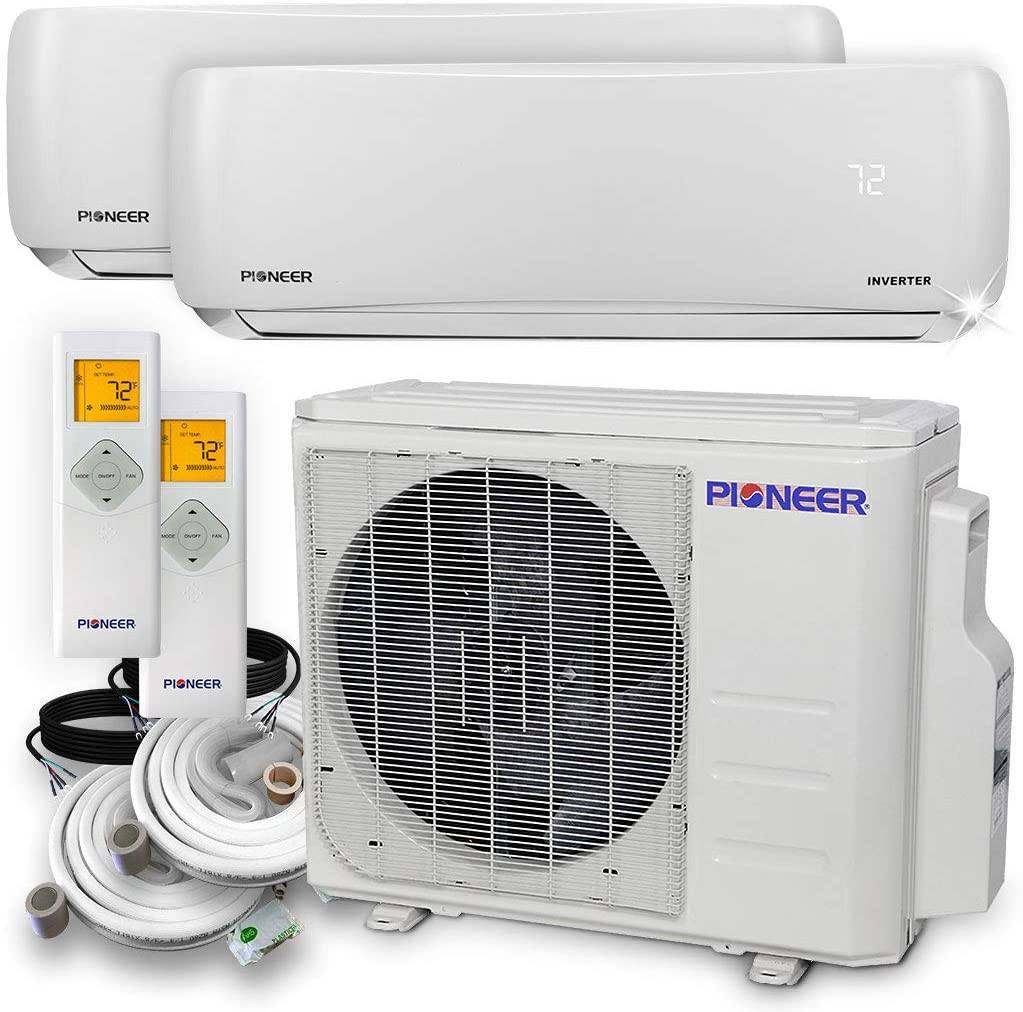

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer multi split systems are available in 4 versions; for 2, 3, 4 and 5 zones.
- Ultra-high efficiency inverter++ ductless multi split dual (2) zone heat pump system
- (x2) inside unit cooling capacity: 12,000 BTU/H nominal capacity, condensing system 17000 BTU/H (Range:4,197 minimum - 19,000 maximum) with 21.3 SEER efficiency
- Heating capacity:18,000 BTU/H nominal (range 2,225 minimum - 23,475 maximum) with 10 HSPF efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)

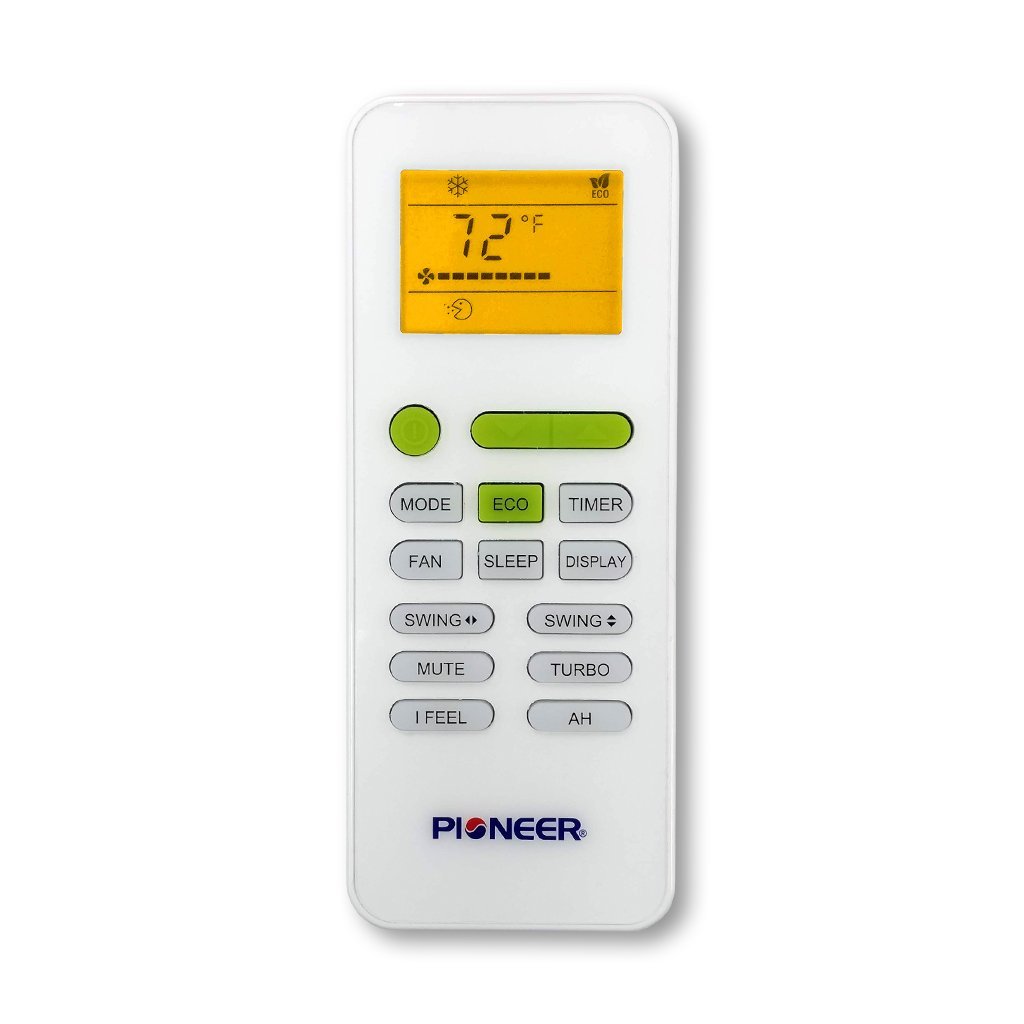

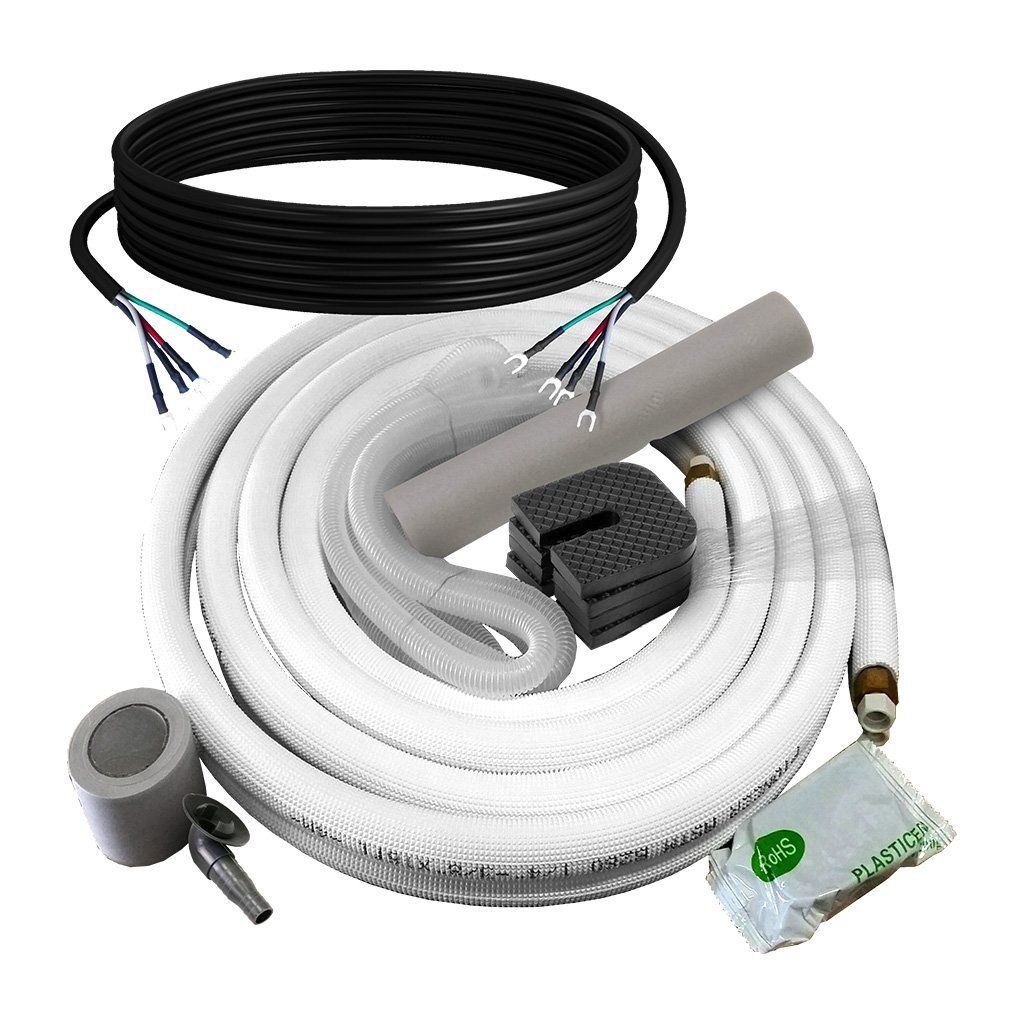

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with optional wi-fi, 16 ft. L line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Low ambient system can heat down to -13°F ambient outdoor temperatures
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption.
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 12,000~24,000 BTU/h
- Cooling Rated Capacity: 17,000 BTU/h
- Cooling Capacity Range: 4,1197~19,900 BTU/h
- Cooling SEER (Ductless): 21.3 BTU/w
- Heating Rated Capacity: 18,000 BTU/h
- Heating Capacity Range: 2,225~23,475 BTU/h
- Heating HSPF (Ductless): 10.0 BTU/w
- Refrigerant Type: R410a
- Suitable Area: 600~800 Sq.F
- Sound Level: 62.0 dB(A)
- Net Dimensions (WDH): 33.3 x 14.4 x 27.6 Inches
- Carton Dimensions (WDH): 38.0 x 15.5 x 29.7 Inches
- Net / Gross Weight: 106 / 115 Lbs
MANUALS & DOCUMENTS
DUAL ZONE COMBINATIONS (IN THOUSANDS BTU)
|Wall: 9 + 9||9 + 9|
|Ducted: 9 + 9||9 + 12|
|12 + 12|
9,000 BTU COMPATIBLE UNITS

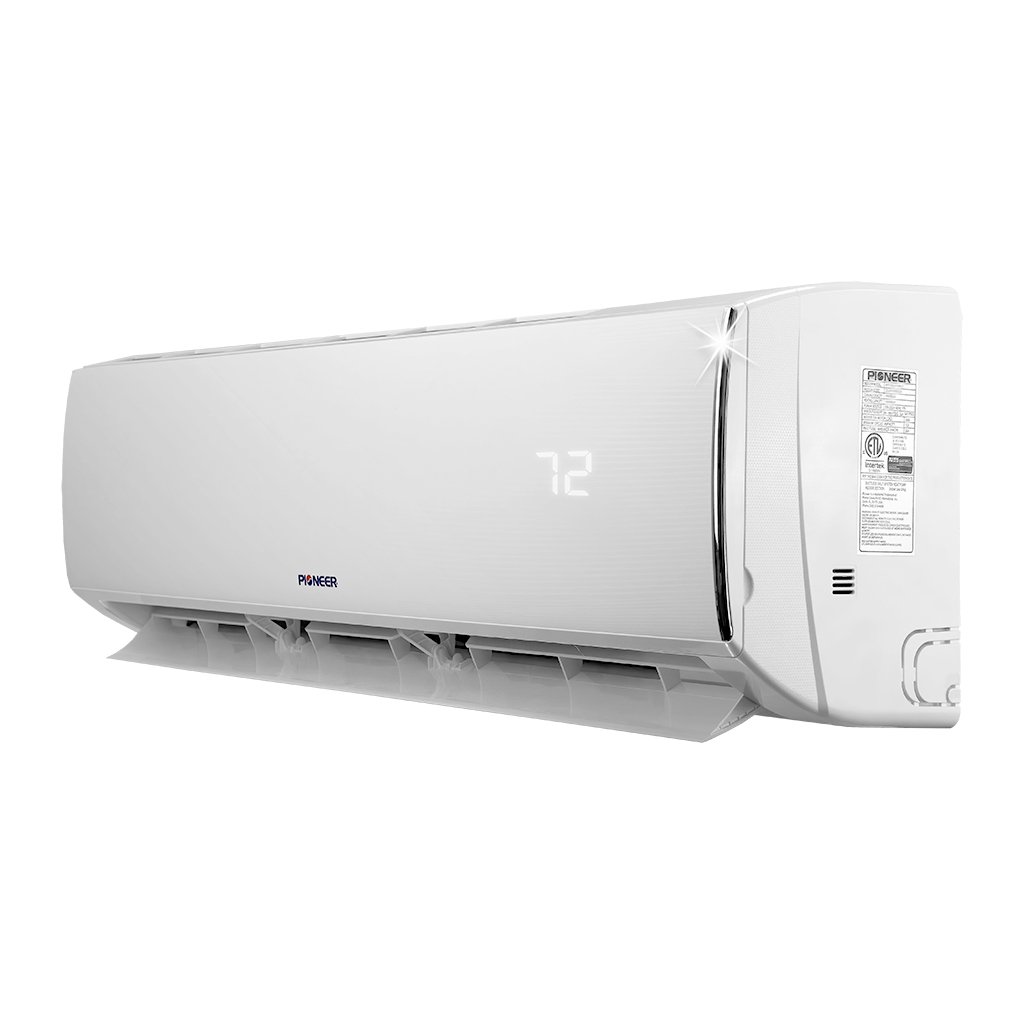

- Wall Mounted: WS009GMFI22HLD (30.3 x 11.8 x 21.8 inches)
- Cassette: CB009GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Concealed Ducted: RB009GMFILCFHD (27.5 x 25.0 x 8.3 inches)
12,000 BTU COMPATIBLE UNITS

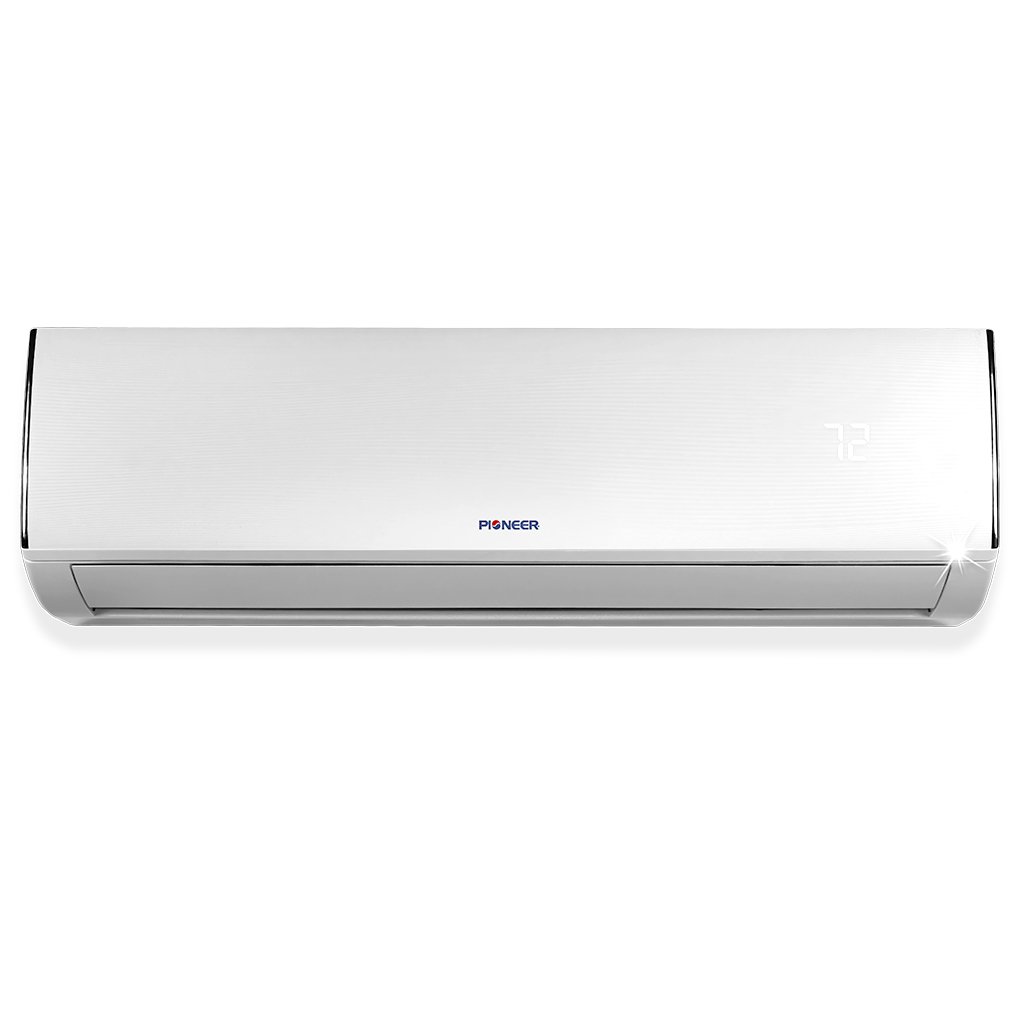

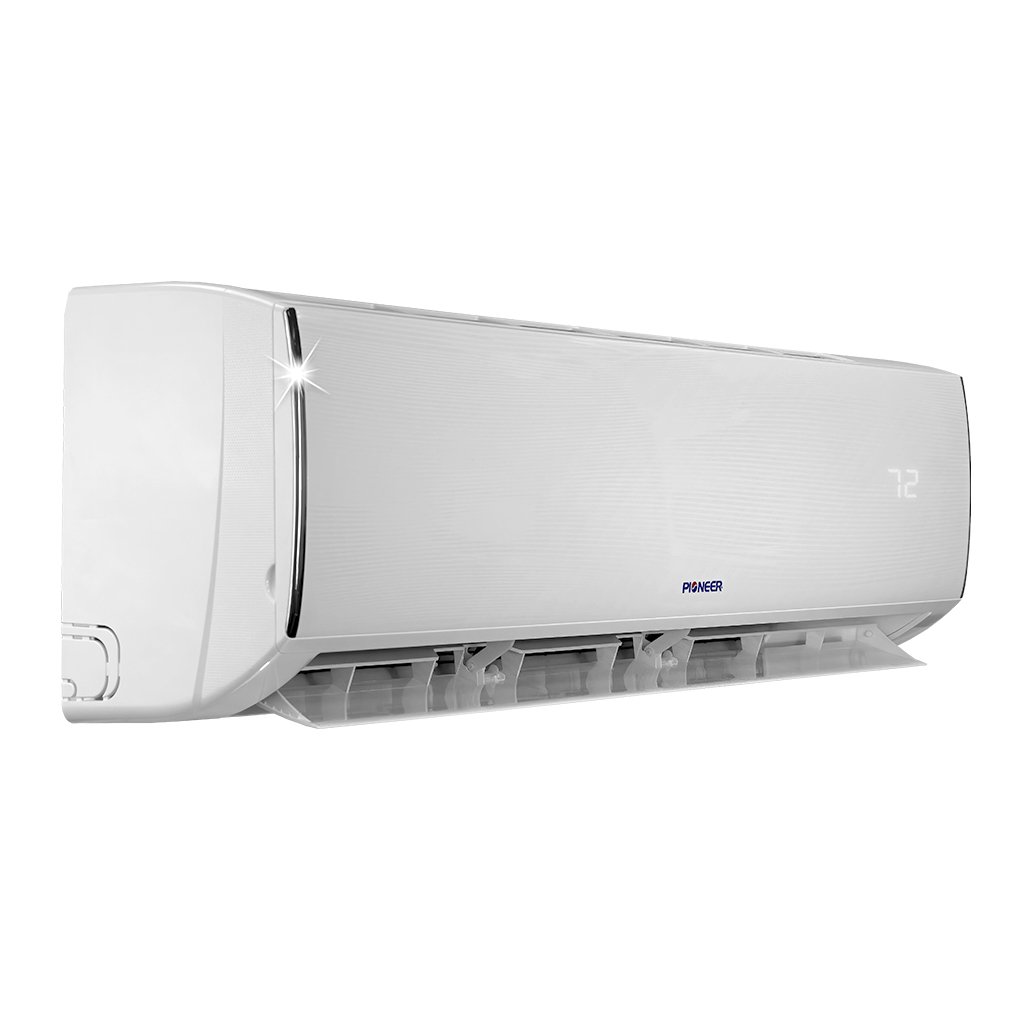

- Wall Mounted: WS012GMFI22HLD (31.5 x 13.2 x 21.7 inches)
- Cassette: CB012GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Floor-Ceiling: FB012GMFILCFHD (27.5 x 23.6 x 8.3 inches)
- Concealed Ducted: RB012GMFILCFHD (27.5 x 25.0 x 8.3 inches)
MIN. / MAX. LOADING
12,000 / 24,000 BTU/h.
Every indoor unit attached will operate at a random, self regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity or OFF). Outdoor unit will also self regulate its output capacity, based on the total demand it reads from all of the simultaneously running indoor units at any given moment.
With multi split systems, the total demand from the outdoor unit, shall seldomly exceed 67% of the total available capacity of the combined indoor unit group due to load fluctuations. Although very seldom, if and when the total demand from the combined indoor group exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
For high demand heating applications, max loading limits may need to be reduced by 10-15 % to avoid under-performance risks at some extreme conditions.

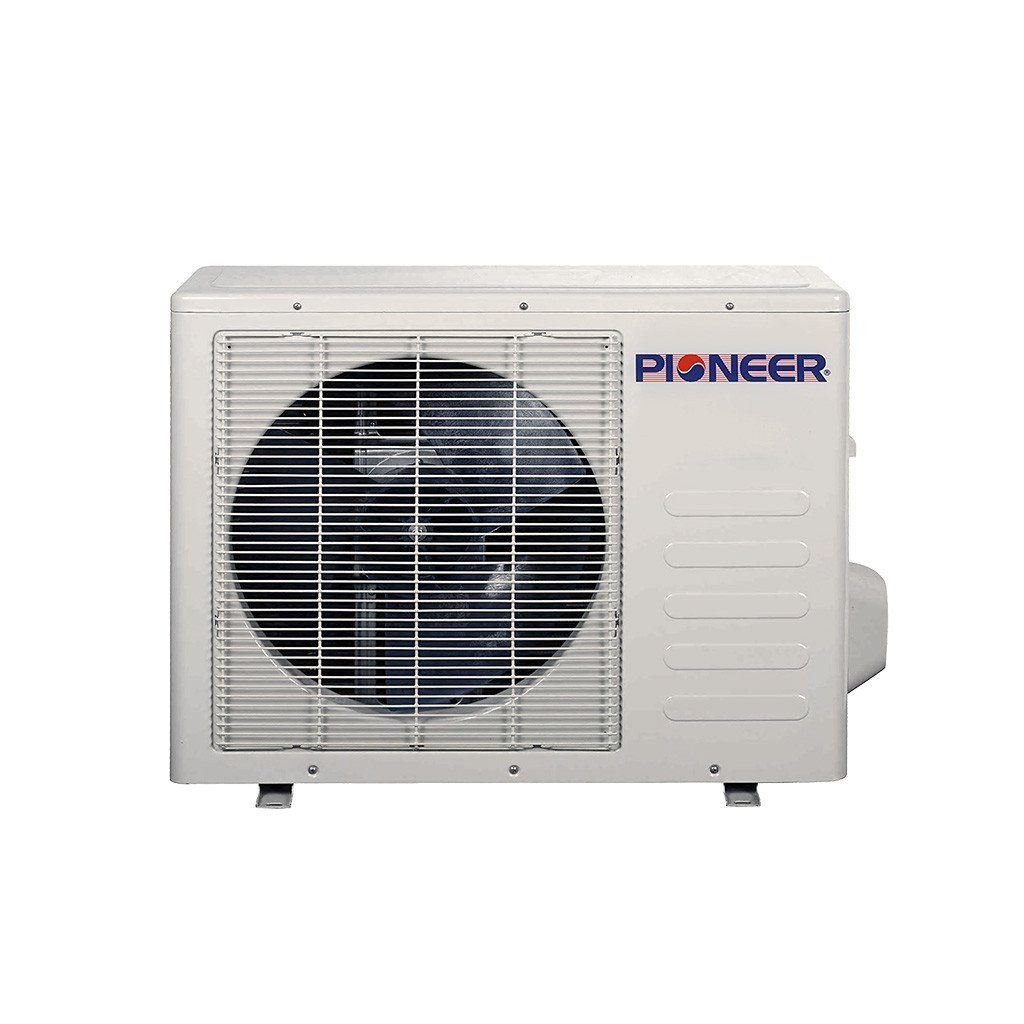

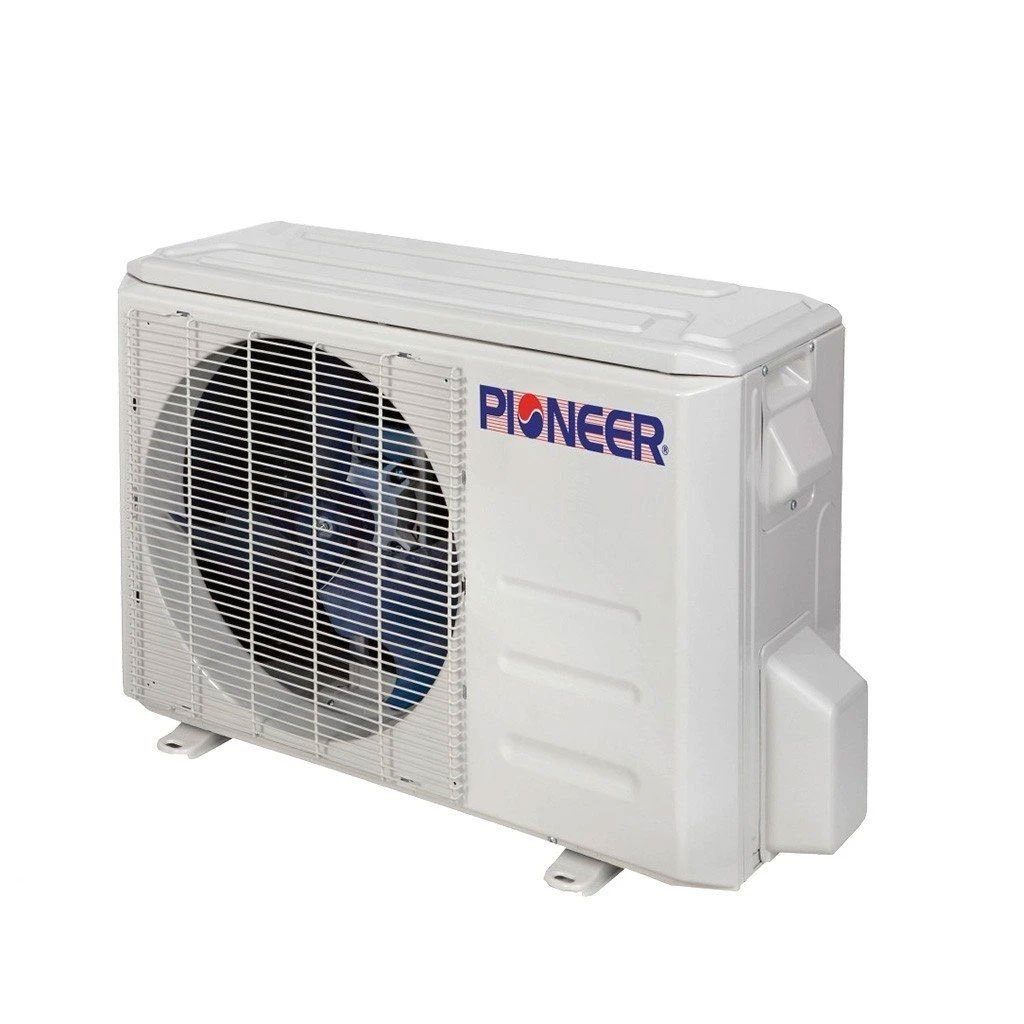

- OUTDOOR SECTION ONLY for Dual (2) Zone
- Ultra High Efficiency DC Inverter++ version
- Cooling capacity: 17,000 BTU/H Nominal (Range: 4,197 MIN ~ 19,900 MAX) with 21.3 SEER efficiency
- Heating capacity: 18,000 BTU/H Nominal (Range: 2,225 MIN ~ 23,475 MAX) with 10 HSPF efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Factory charged for up to 25’ line set per circuit
- Whisper Quiet Operation
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
