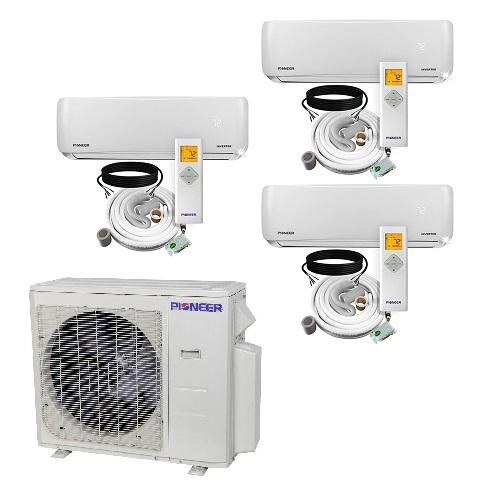

Tri 3 Zone 12000+12000+12000 Multi 22 SEER Ductless Mini Split A/C Heat Pump
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer multi split systems are available in 4 versions; for 2, 3, 4 and 5 zones.
Product Details
- OUTDOOR SECTION ONLY for Triple (3) Zone
- Ultra High Efficiency DC Inverter++ version
- Cooling capacity: 27,000 BTU/H Nominal (Range: 6,630 MIN ~ 30,600 MAX) with 22 SEER efficiency
- Heating capacity: 28,000 BTU/H Nominal (Range: 3,690 MIN ~ 32,860 MAX) with 9.8 HSPF efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- Factory charged for up to 25’ line set per circuit
- Whisper Quiet Operation
What’s Included:

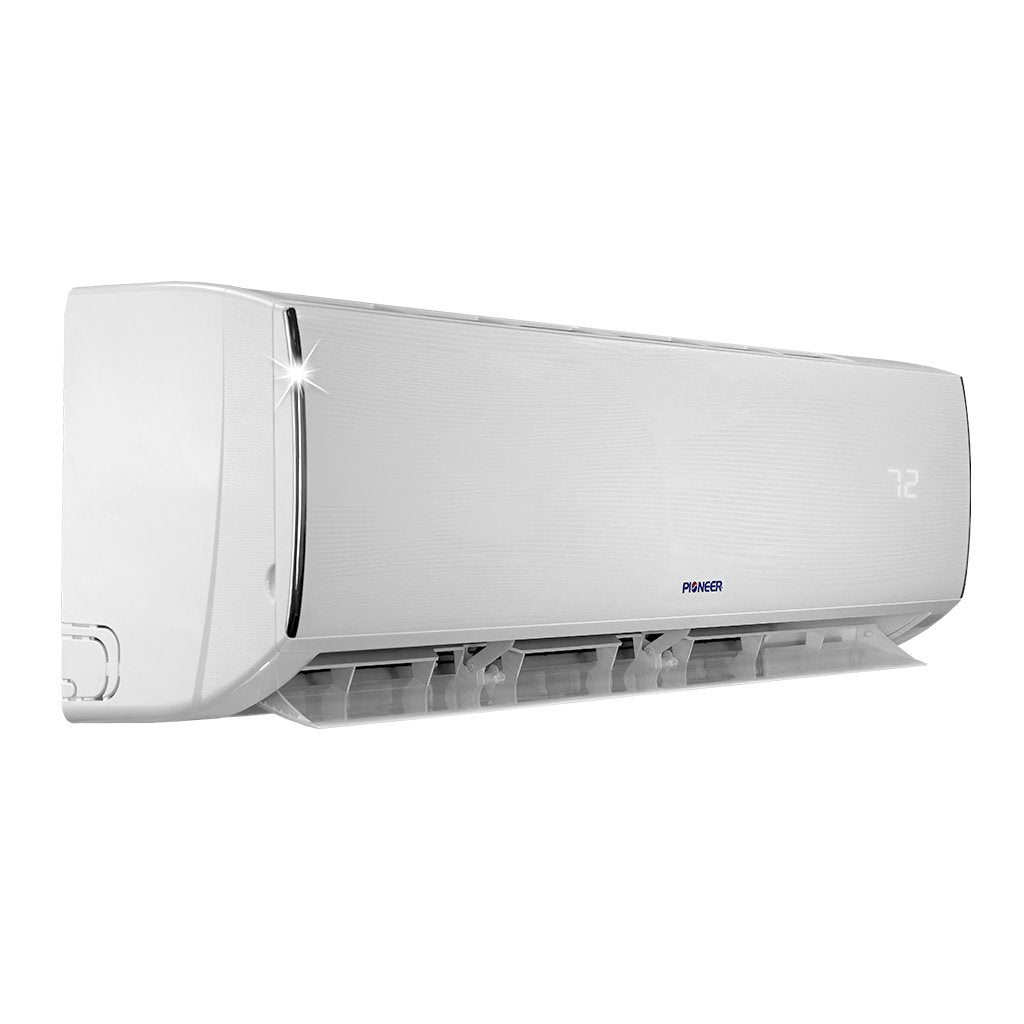

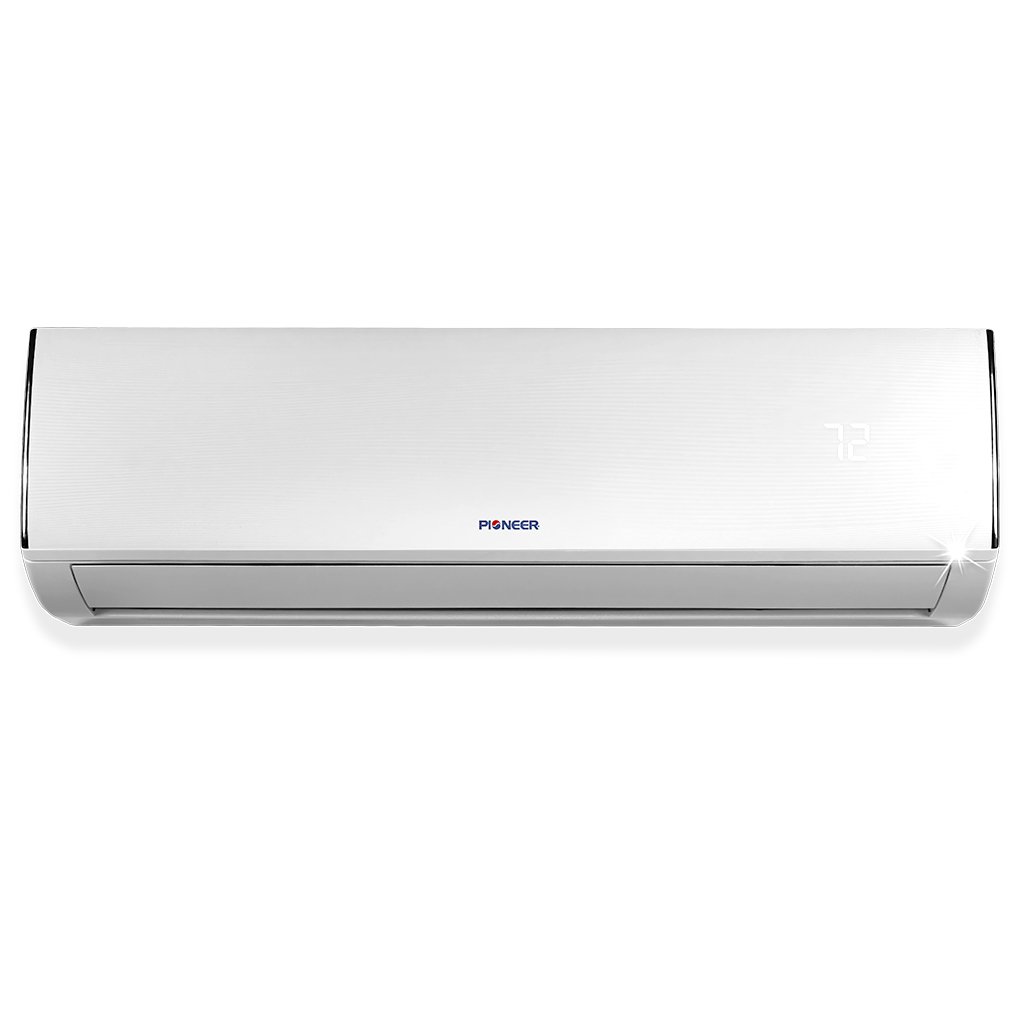

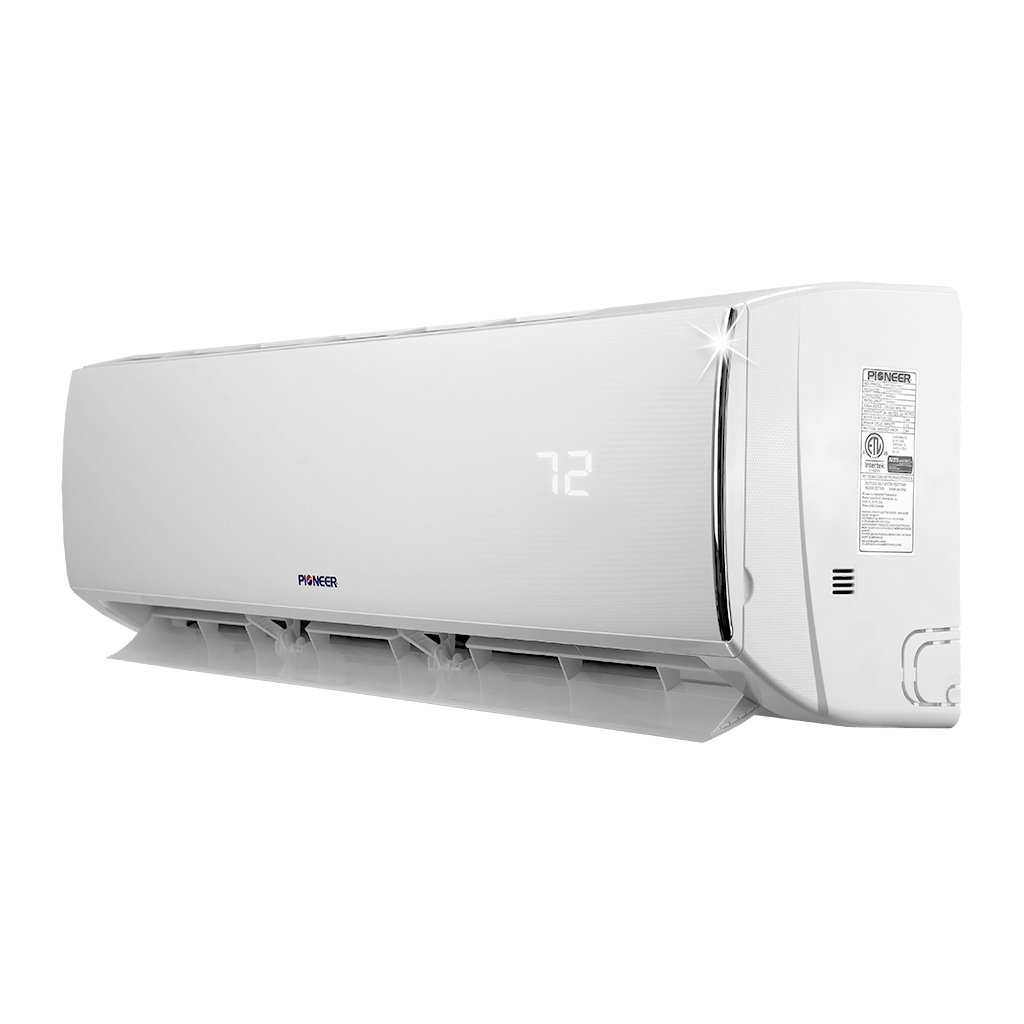

- Indoor Unit WS012GMFI22HLD (3X12000BTU)

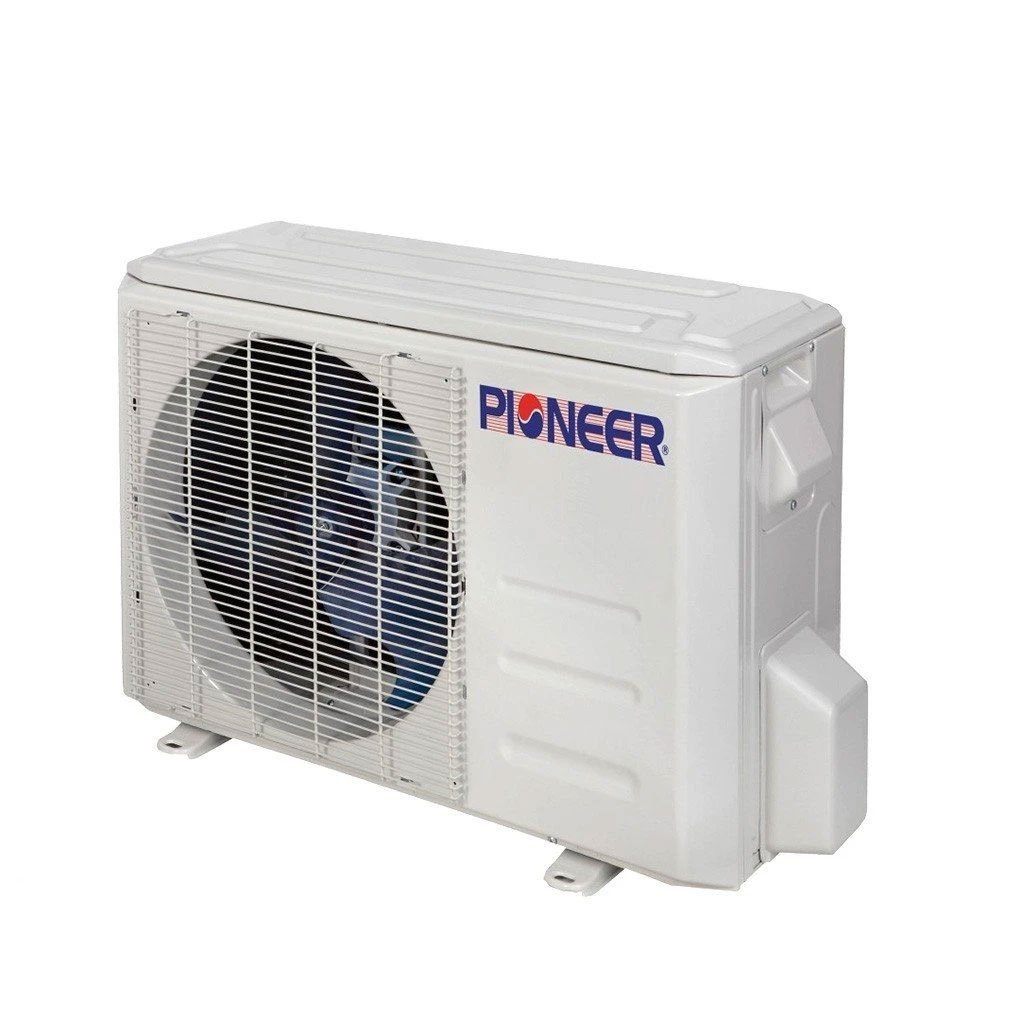

- Outdoor Unit YN030GMFI22M3D

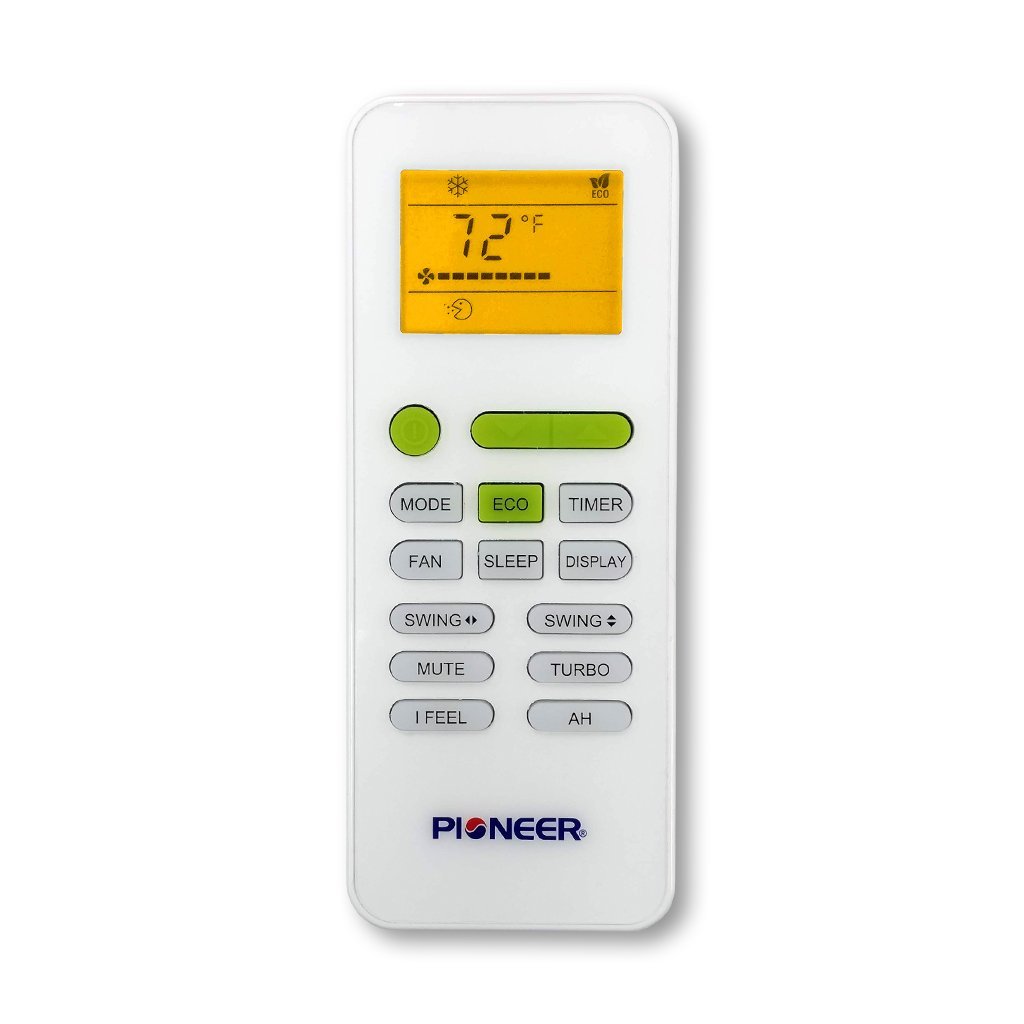

- Remote Controls

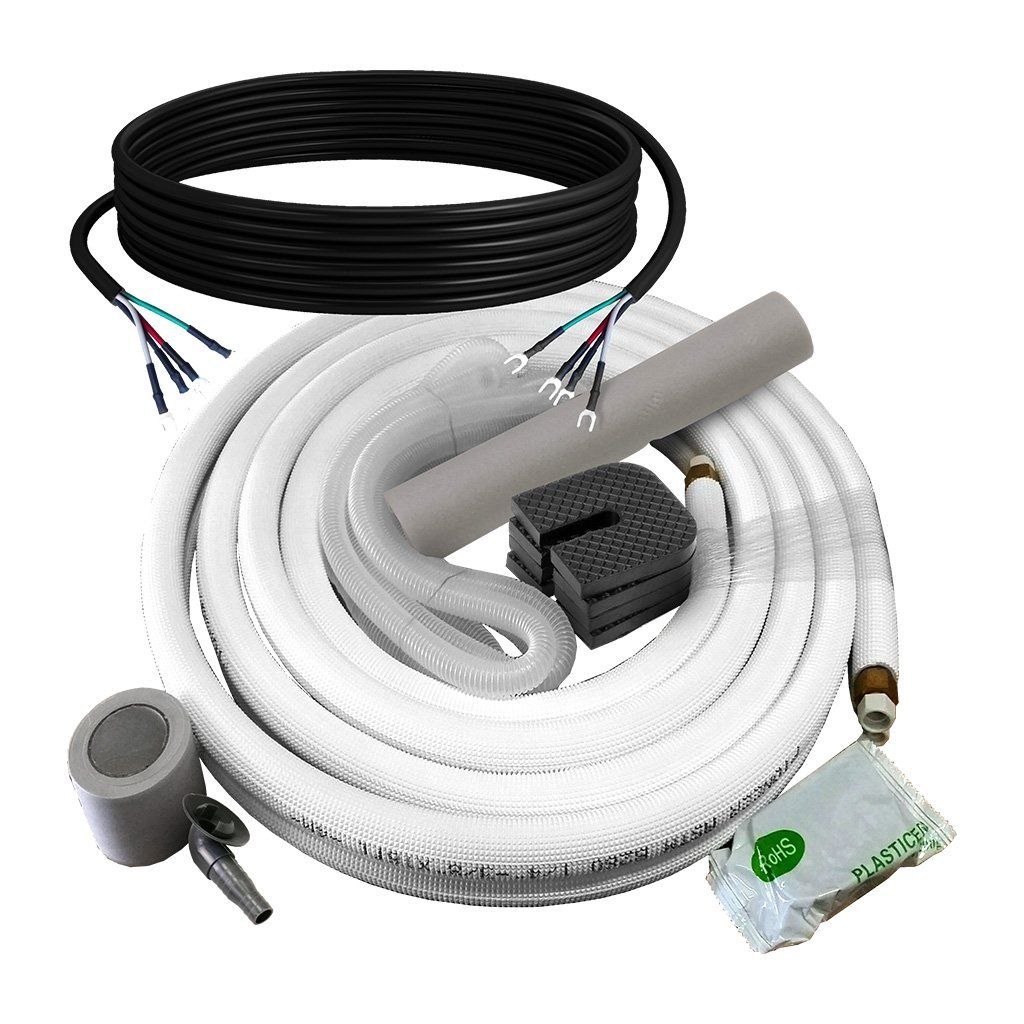

- Installation kit
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Factory Warranty:
- 2 year parts limited warranty
- 5 years compressor limited warranty
Inverter++ Variable Speed Multi Split Systems we offer are available in a mix and match fashion and fully user selectable and customizable. Multi Zone Wall Mount Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 12,000 BTU/Hr. (1 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 21.5 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit.
WALL MOUNT INDOOR SECTION
REFRIGERANT
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
TRIPLE ZONE COMBINATIONS (IN THOUSANDS BTU)
| Rating | Two Units | Three units | ||
|---|---|---|---|---|
| Wall: 9 + 9 + 9 | 9 + 9 | 9 + 9 + 9 | ||
| Ducted: 9 + 9 + 9 | 9 + 12 | 9 + 9 + 12 | ||
| 9 + 18 | 9 + 9 + 18 | |||
| 12 + 12 | 9 + 12 + 12 | |||
| 12 + 18 | 9 + 12 + 18 | |||
| 18 + 18 | 12 + 12 + 12 |
9,000 BTU COMPATIBLE UNITS
- Wall Mounted: WS009GMFI22HLD (30.3 x 11.8 x 21.8 inches)
- Cassette: CB009GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Concealed Ducted: RB009GMFILCFHD (27.5 x 25.0 x 8.3 inches)
12,000 BTU COMPATIBLE UNITS
- Wall Mounted: WS012GMFI22HLD (31.5 x 13.2 x 21.7 inches)
- Cassette: CB012GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Floor-Ceiling: FB012GMFILCFHD (27.5 x 23.6 x 8.3 inches)
- Concealed Ducted: RB012GMFILCFHD (27.5 x 25.0 x 8.3 inches)
18,000 BTU COMPATIBLE UNITS
- Wall Mounted: WS018GMFI22HLD (33.3 x 14.4 x 27.6 inches)
- Cassette: CB018GMFILCFHD (22.5 x 22.5 x 10.3 inches)
- Concealed Ducted: RB018GMFILCFHD (36.3 x 25.0 x 8.3 inches)
- Flex mount: UB018GMFILCFHD (42.0 x 26.5 x 9.3 inches)
MIN. / MAX. LOADING
18,000 / 36,000 BTU/h.
NOTES
Every indoor unit attached will operate at a random, self regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity or OFF). Outdoor unit will also self regulate its output capacity, based on the total demand it reads from all of the simultaneously running indoor units at any given moment.
With multi split systems, the total demand from the outdoor unit, shall seldomly exceed 67% of the total available capacity of the combined indoor unit group due to load fluctuations. Although very seldom, if and when the total demand from the combined indoor group exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
For high demand heating applications, max loading limits may need to be reduced by 10-15 % to avoid under-performance risks at some extreme conditions.
Technical Information
CERTIFICATIONS
PERFORMANCE DATA OUTDOOR SECTION
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 18,000~36,000 BTU/h
- Cooling Rated Capacity: 27,000 BTU/h
- Cooling Capacity Range: 6,630~30,600 BTU/h
- Cooling SEER (Ductless): 22.0 BTU/w
- Heating Rated Capacity: 28,000 BTU/h
- Heating Capacity Range: 3,690~32,860 BTU/h
- Heating HSPF (Ductless): 9.8 BTU/w
- Refrigerant Type: R410a
- Suitable Area: 800~1,200 Sq.F
- Sound Level: 63.0 dB(A)
- Net Dimensions (WDH): 37.2 x 16.5 x 31.8 Inches
- Carton Dimensions (WDH): 42.8 x 19.6 x 34.5 Inches
- Net / Gross Weight: 150 / 161 Lbs
PERFORMANCE DATA INDOOR SECTION
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 18,000~36,000 BTU/h
- Cooling Rated Capacity: 27,000 BTU/h
- Cooling Capacity Range: 6,630~30,600 BTU/h
- Cooling SEER (Ductless): 22.0 BTU/w
- Heating Rated Capacity: 28,000 BTU/h
- Heating Capacity Range: 3,690~32,860 BTU/h
- Heating HSPF (Ductless): 9.8 BTU/w
- Refrigerant Type: R410a
- Suitable Area: 800~1,200 Sq.F
- Sound Level: 63.0 dB(A)
- Net Dimensions (WDH): 37.2 x 16.5 x 31.8 Inches
- Carton Dimensions (WDH): 42.8 x 19.6 x 34.5 Inches
- Net / Gross Weight: 150 / 161 Lbs
