Product Details
-

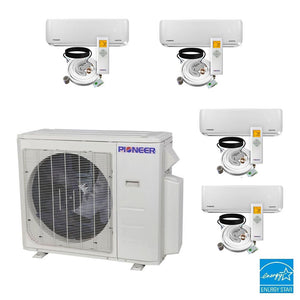

OUTDOOR SECTION ONLY for Quad (4) Zone
-
Ultra High Efficiency DC Inverter++ version
-
Cooling capacity: 36,000 BTU/H Nominal (Range: 8,190 MIN ~ 38,500 MAX) with 22.5 SEER efficiency
-
Heating capacity: 36,000 BTU/H Nominal (Range: 4,940 MIN ~ 38,000 MAX) with 10.3 HSPF efficiency
-
Voltage: 208~230 V, 60 Hertz, 1 Ph
-
Factory charged for up to 25’ line set per circuit
-
Whisper Quiet Operation
What’s Included:
-

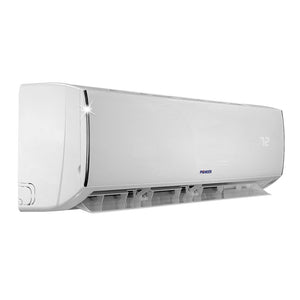

Indoor Unit WS012GMFI22HLD (4X12000BTU)
-

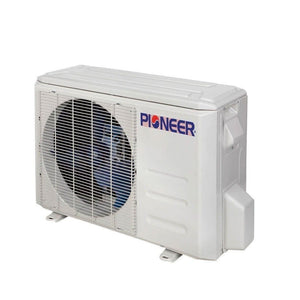

Outdoor Unit YN040GMFI22M4D
-
Remote Controls
-

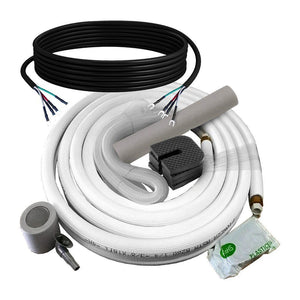

Installation kit
-
Installation Manual
User’s Manual
Manufacturer Warranty
Factory Warranty:
-
2 year parts limited warranty
-
5 years compressor limited warranty
CERTIFICATIONS
PERFORMANCE DATA OUTDOOR SECTION
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 24,000~48,000 BTU/h
- Cooling Rated Capacity: 36,000 BTU/h
- Cooling Capacity Range: 8,190~38,500 BTU/h
- Cooling SEER (Ductless): 22.5 BTU/w
- Heating Rated Capacity: 36,000 BTU/h
- Heating Capacity Range: 4,940~38,000 BTU/h
- Heating HSPF (Ductless): 10.3 BTU/w
- Refrigerant Type: R410a
- Suitable Area: 1,200~1,600 Sq.F
- Sound Level: 62.0 dB(A)
- Net Dimensions (WDH): 37.2 x 16.5 x 31.8 Inches
- Carton Dimensions (WDH): 42.8 x 19.6 x 34.5 Inches
- Net / Gross Weight: 157 / 168 Lbs
PERFORMANCE DATA INDOOR SECTION
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 12,000 BTU/h
- Cooling SEER: 21.5
- Heating Capacity: 12,000 BTU/h
- Heating HSPF: 11.0
- Suitable Area: 350~450 Sq.F
- Air Flow (Hi/Med/Lo): 306 / 212 / 147 CFM
- Sound Level (Hi/Lo): 39 / 25 dB(A)
- Net Dimensions (WDH): 31.5 x 7.5 x 11.6 Inches
- Carton Dimensions (WDH): 34.5 x 11.2 x 14.7 Inches
- Net / Gross Weight: 18 / 22 Lbs
| Weight | 229 lbs |
|---|---|
| Brand |
Pioneer |
| Suitable Area |
1,200~1,600 Sq.F |
| Refrigerant Type |
R410a |
| INDOOR UNIT Net Dimensions (WDH) |
31.5 x 7.5 x 11.6 Inches |
| OUTDOOR UNIT Net Dimensions (WDH) |
37.2 x 16.5 x 31.8 Inches |
