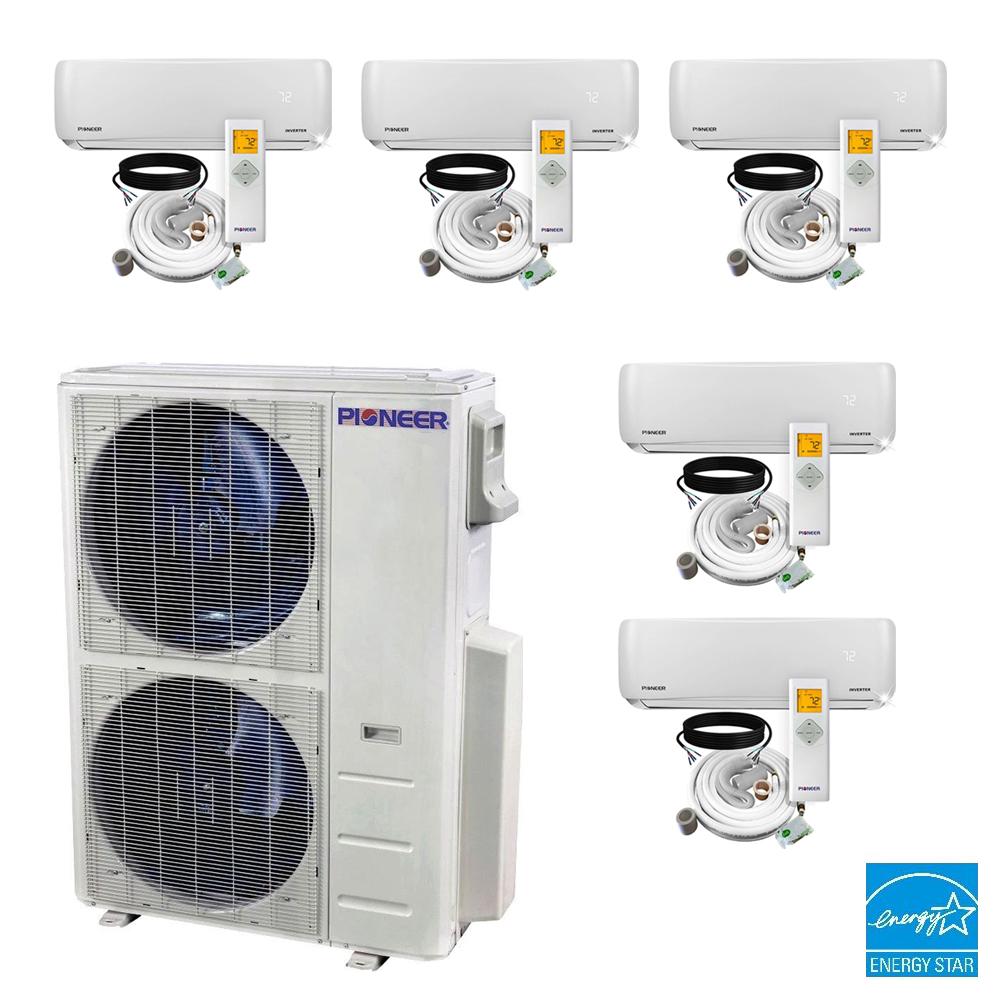

Pioneer® Multi 60,000 BTU 5 Ton 21.3 SEER Quint (5 Zone) Wall Mount Air Conditioner Heat Pump, 230-Volt 16 ft.

60,000 BTU ( 12K+12K+12K+12K+12K ) Multi 21.5 SEER Ductless Mini Split A/C Heat Pump

Product Details

• OUTDOOR SECTION ONLY for Quint (5) Zone
• Ultra High Efficiency DC Inverter++ version
• Cooling capacity: 48,000 BTU/H Nominal (Range: 9,650 MIN ~ 53,500 MAX) with 21.5 SEER efficiency
• Heating capacity: 48,000 BTU/H Nominal (Range: 6,850 MIN ~ 53,980 MAX) with 10.4 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Factory charged for up to 25’ line set per circuit
• Whisper Quiet Operation

What’s Included:

• Indoor Unit WS009GMFI22HLD (5X9000BTU)

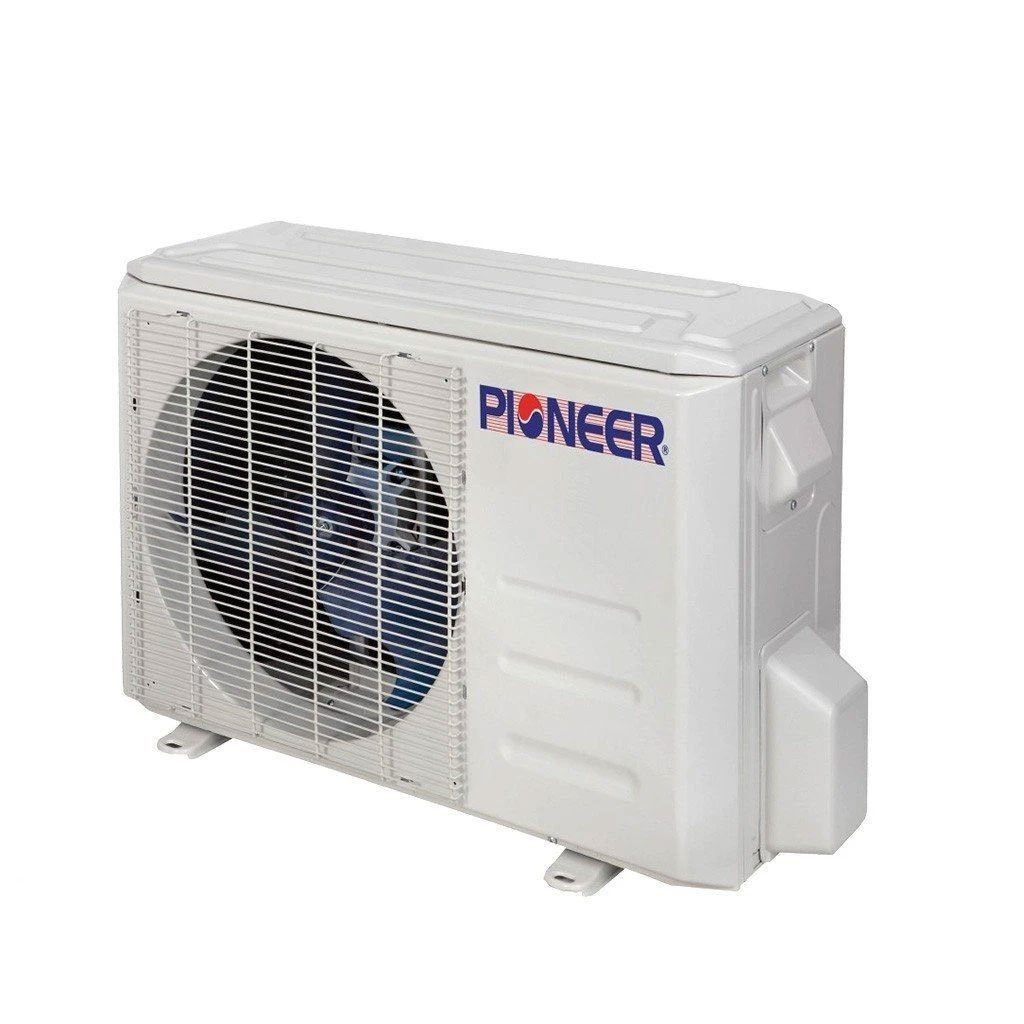

• Outdoor Unit YN050GMFI22M5D
• Remote Controls

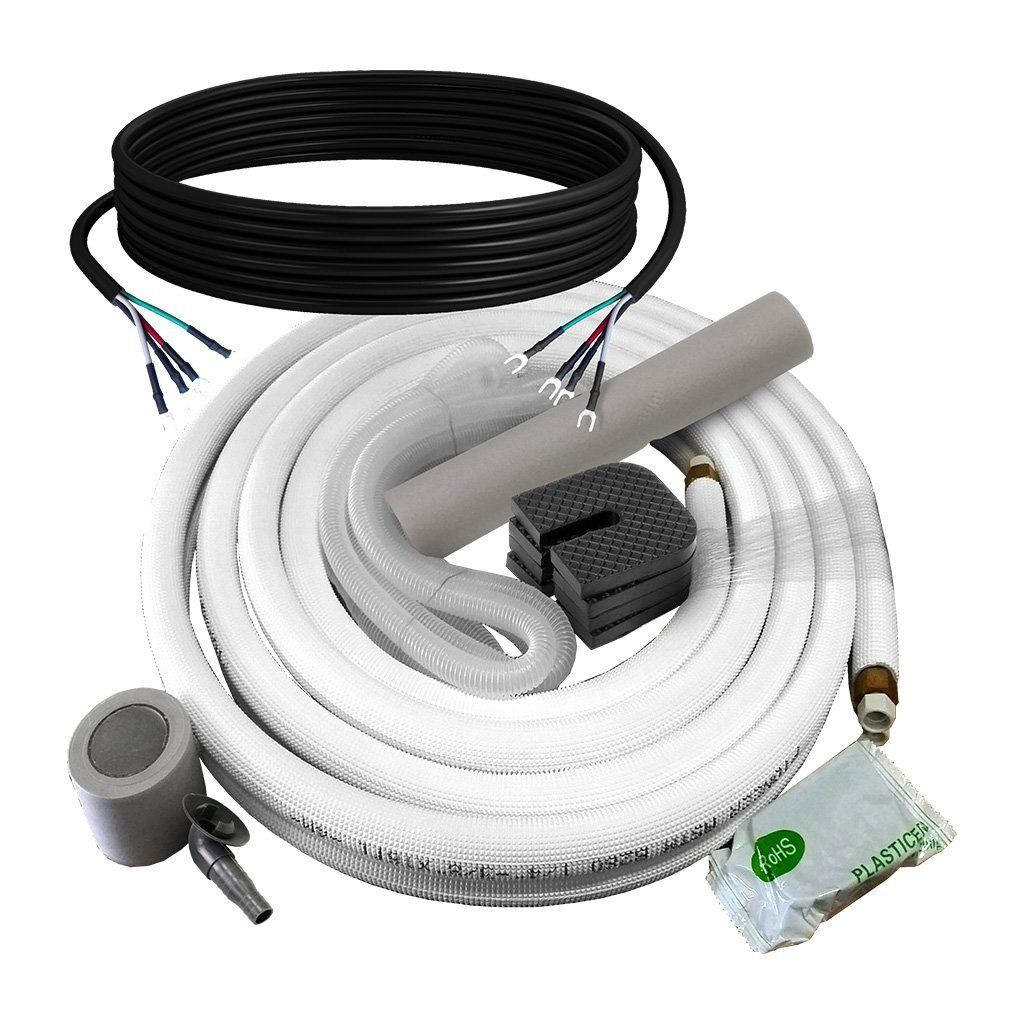

• Installation kit
• Installation Manual
  User’s Manual
  Manufacturer Warranty

Factory Warranty:

• 2 year parts limited warranty
• 5 years compressor limited warranty

Inverter++ Variable Speed Multi Split Systems we offer are available in a mix and match fashion and fully user selectable and customizable. Multi Zone Wall Mount Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 9,000 BTU/Hr. (3/4 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 22.8 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit.

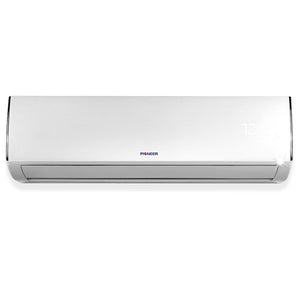

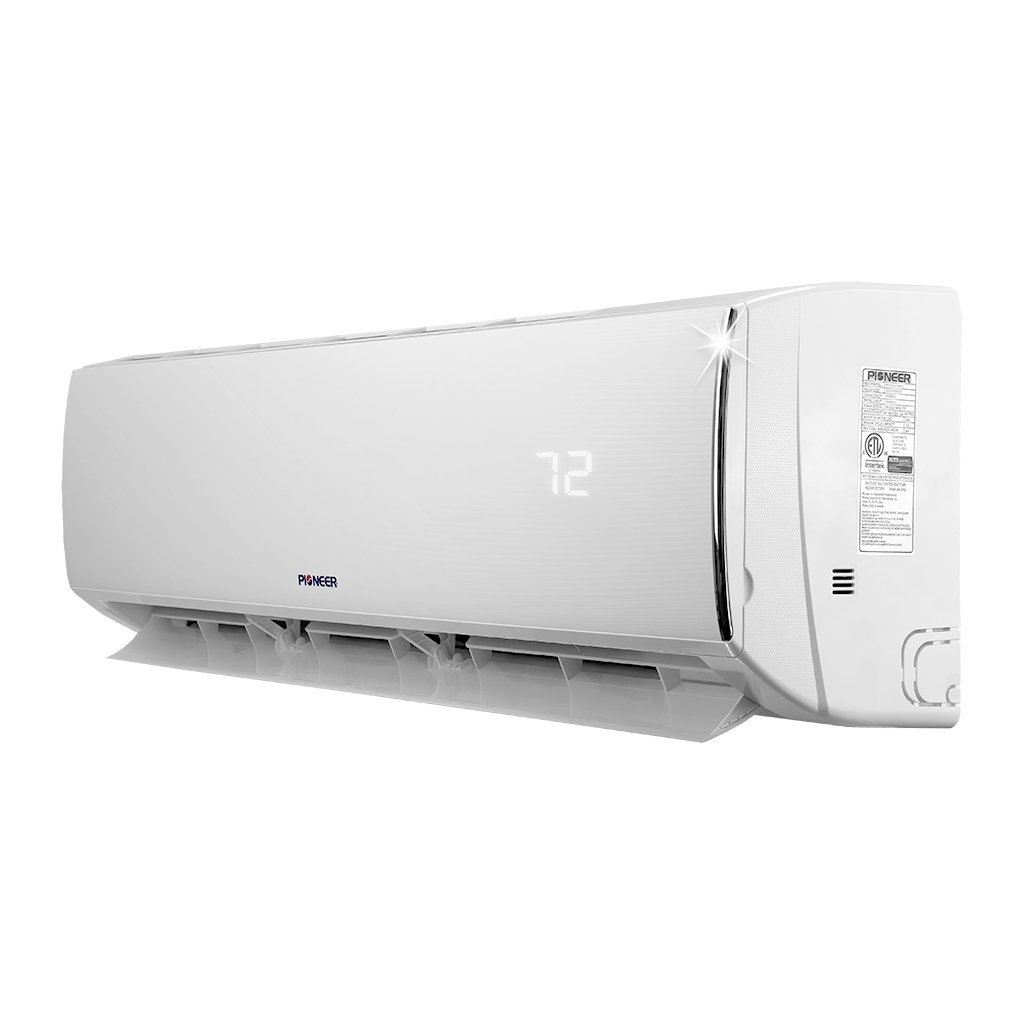

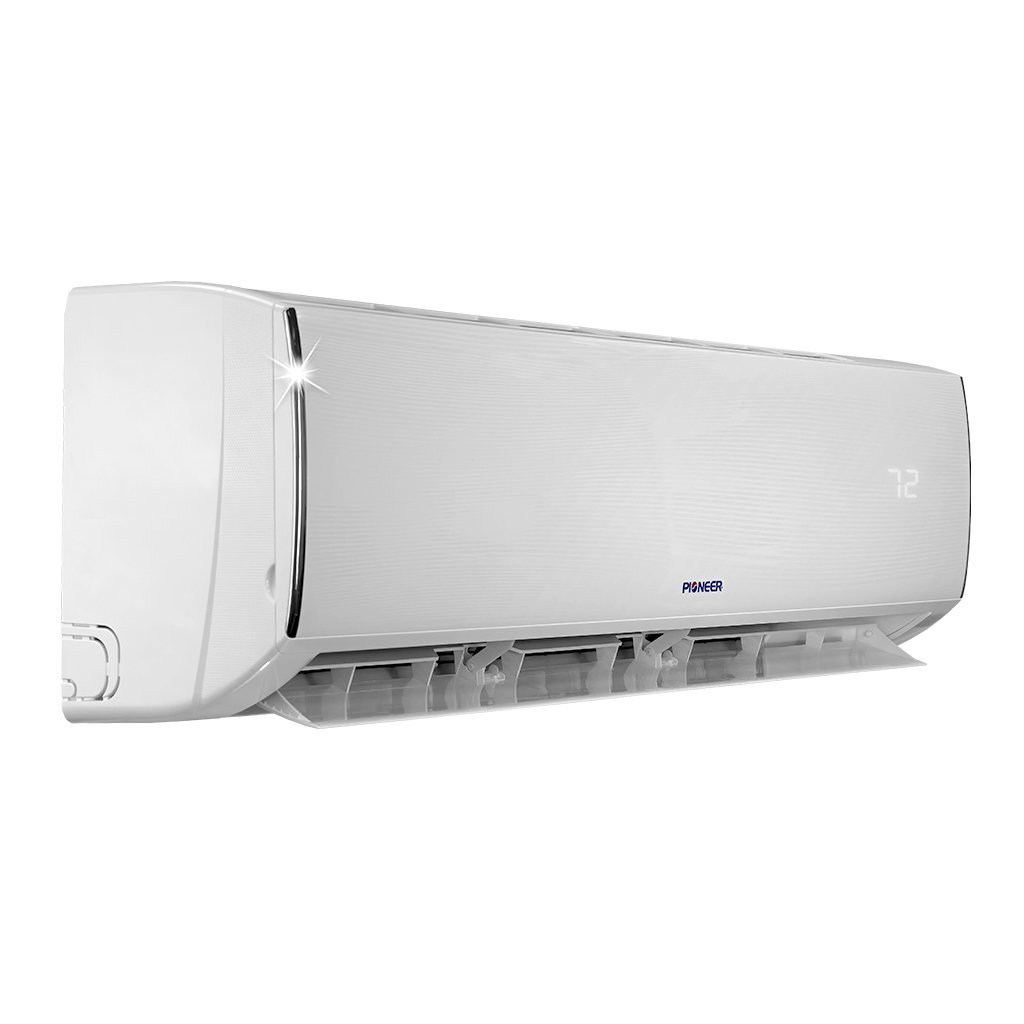

WALL MOUNT INDOOR SECTION

REFRIGERANT

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.



CERTIFICATIONS

PERFORMANCE DATA OUTDOOR SECTION

• Power Supply: 208~230V, 60Hz, 1Ph
• Communication Protocol: Current Loop
• Min-Max Load Attached: 36,000~64,000 BTU/h
• Cooling Rated Capacity: 48,000 BTU/h
• Cooling Capacity Range: 9,650~53,500 BTU/h
• Cooling SEER (Ductless): 21.5 BTU/w
• Heating Rated Capacity: 48,000 BTU/h
• Heating Capacity Range: 6,850~53,980 BTU/h
• Heating HSPF (Ductless): 10.4 BTU/w
• Refrigerant Type: R410a
• Suitable Area: 1,600~2,000 Sq.F
• Sound Level: 64.0 dB(A)
• Net Dimensions (WDH): 37.2 x 16.4 x 52.5 Inches
• Carton Dimensions (WDH): 43.2 x 19.5 x 58.3 Inches
•  Net / Gross Weight: 224 / 255 Lbs

PERFORMANCE DATA INDOOR SECTION

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 9,000 BTU/h
• Cooling SEER: 22.8
• Heating Capacity: 10,000 BTU/h
• Heating HSPF: 10.5
• Suitable Area: 250~350 Sq.F
• Air Flow (Hi/Med/Lo): 265 / 205 / 141 CFM
• Sound Level (Hi/Lo): 39 / 24.5 dB(A)
• Net Dimensions (WDH): 31.5 x 7.5 x 11.6 Inches
• Carton Dimensions (WDH): 34.5 x 11.2 x 14.7 Inches
• Net / Gross Weight: 18 / 22 Lbs

MANUALS & DOCUMENTS

• Technical Brochure

• User Manual
• Installation Manual
• Service Manual
• AHRI Certificate
